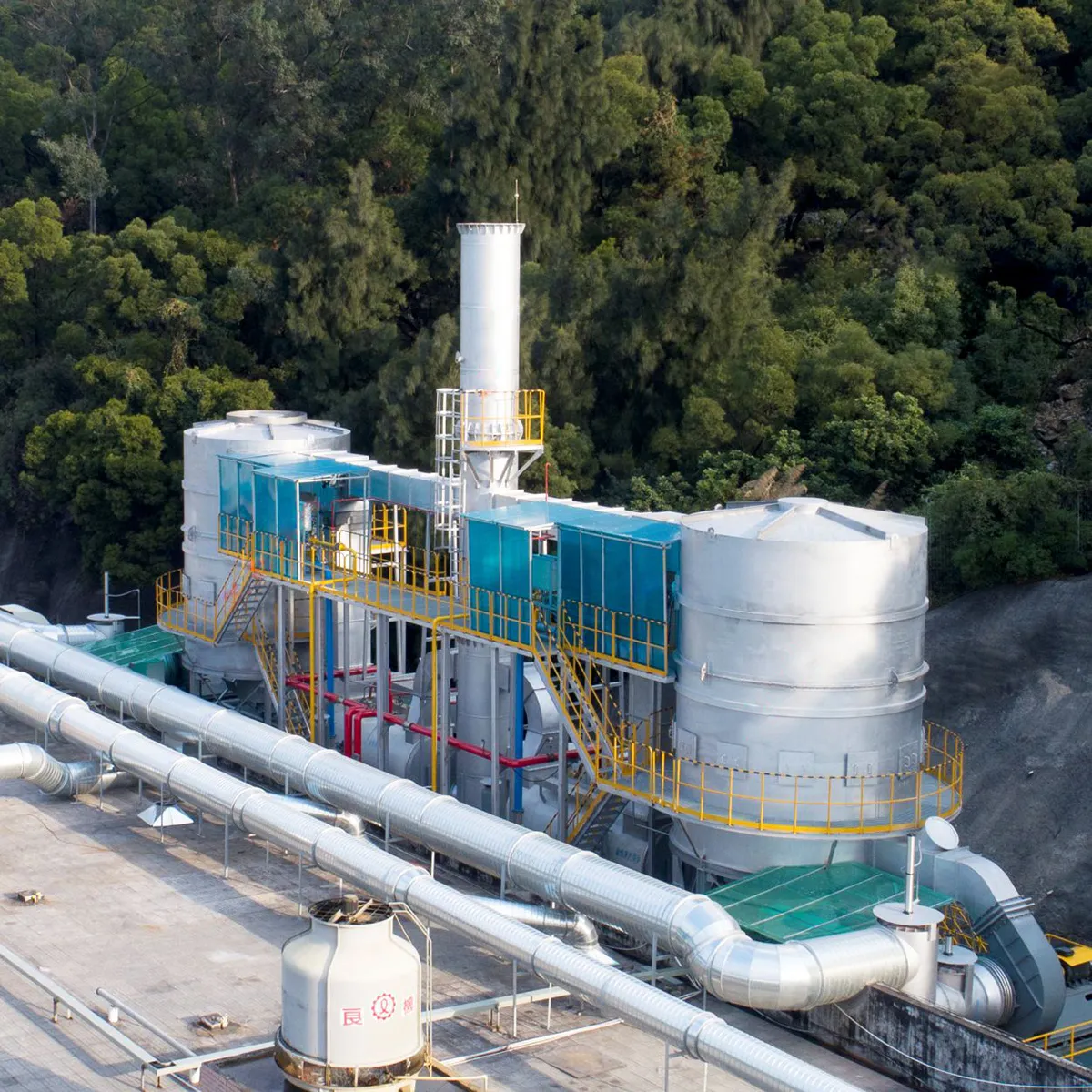

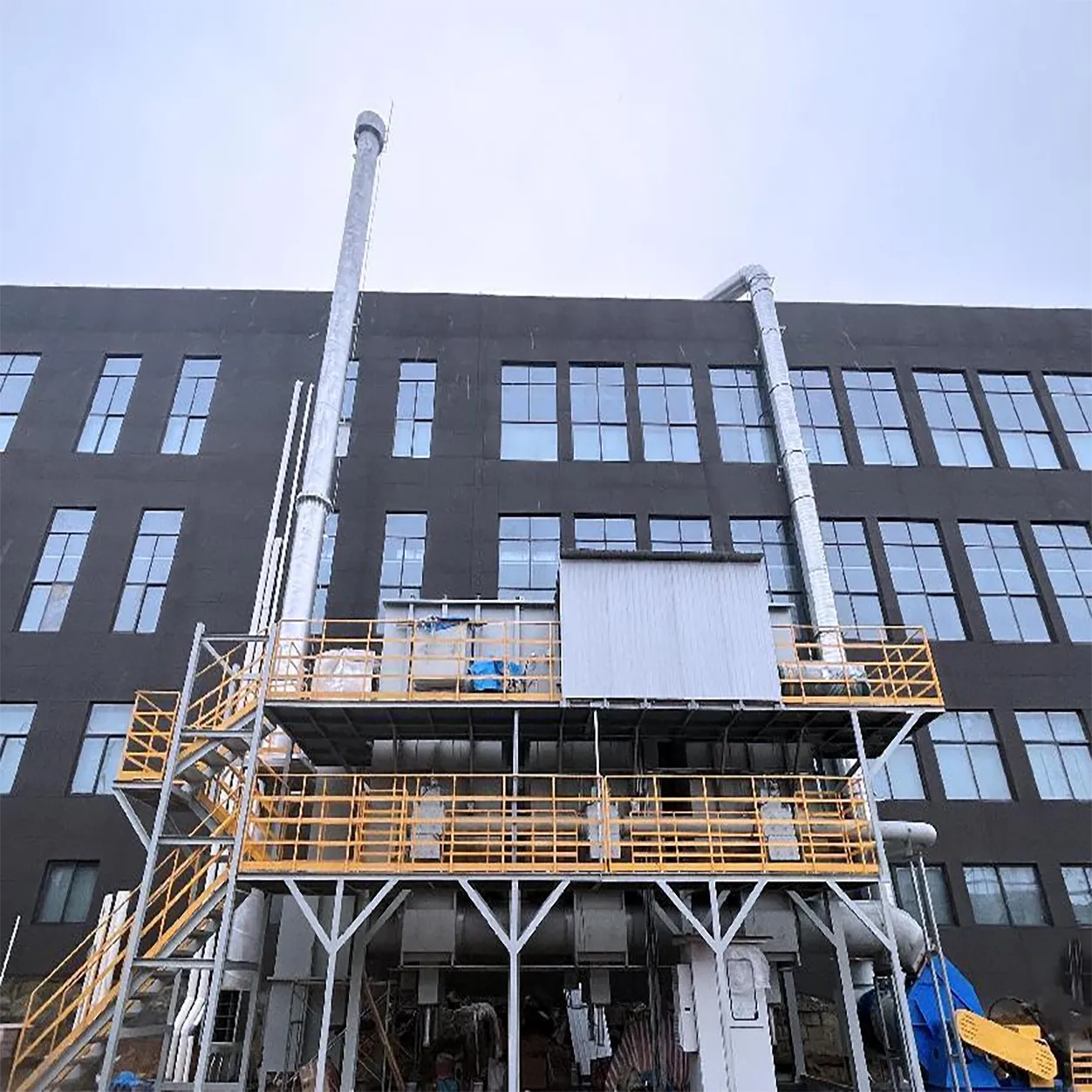

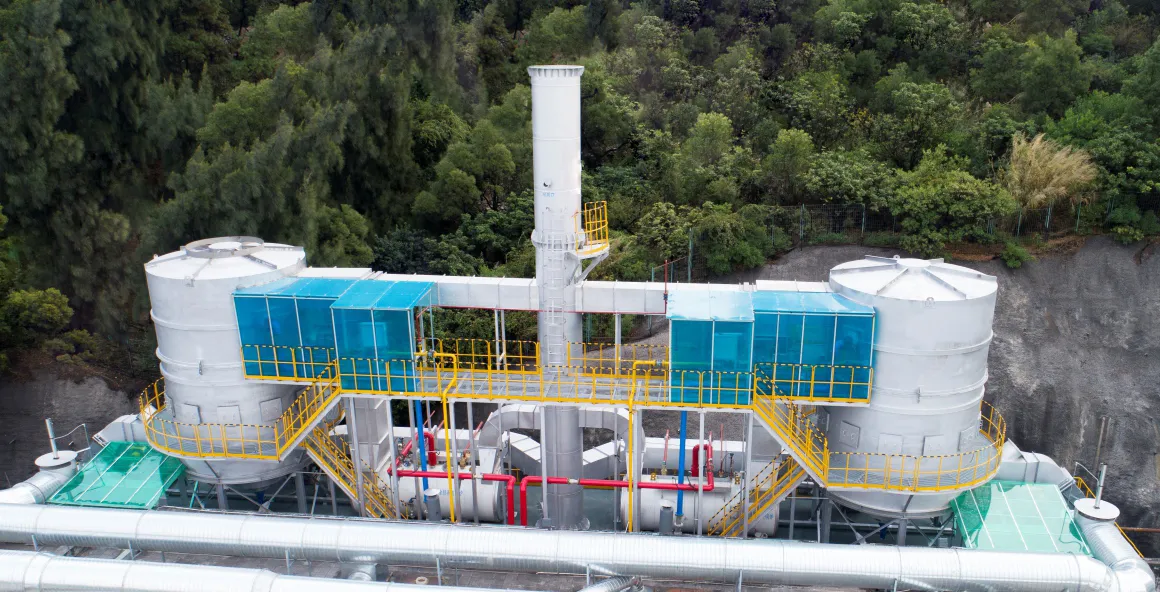

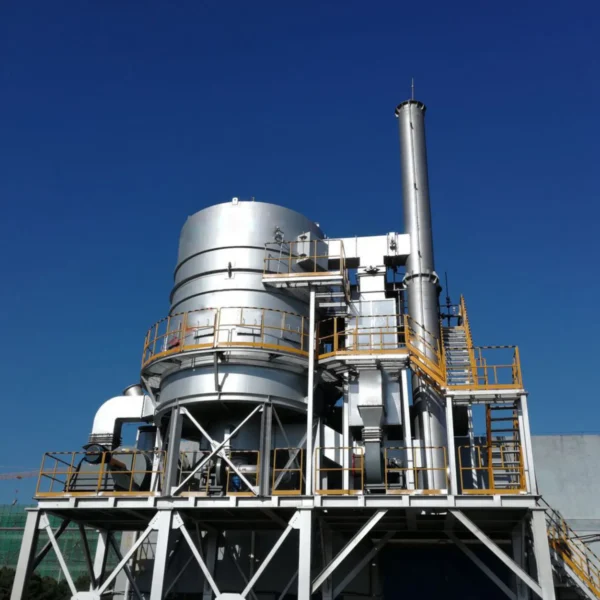

The bed RTO operates on the principle of oxidizing and decomposing combustible waste gases into oxides and water at high temperatures, effectively purifying the exhaust and recovering the energy released during this process. The Bed RTO is a traditional type of RTO, typically featuring three regenerative chambers. However, if the exhaust gas volume is substantial, it can also be equipped with five or seven regenerative chambers.

The exhaust gas distribution valve, driven by a motor, rotates continuously and uniformly, allowing the waste gas to cycle through the different chambers. Furthermore, when exhaust gas concentration is elevated, a waste heat recovery boiler can be integrated to utilize the waste gas as fuel, transforming waste into valuable resources, with recovery options including hot air, hot water, steam, and thermal oil.

Bed RTO Regenerative Thermal Oxidizer Specifications

Specifications for Bed RTOs vary by model, but typical parameters include processing flow rates ranging from 5,000 to 500,000 SCFM (approximately 4,815 to 802,500 Nm³/hr) and concentration levels from 0 to 25% LEL. Destruction efficiencies can exceed 99%, while thermal efficiencies typically fall between 95% and 97%. Combustion chamber temperatures usually range from 1500°F to 2000°F (815°C to 1093°C), with residence times of 0.5 to 1.0 seconds.

The heights of ceramic media beds range from 1600 mm to 2500 mm, utilizing materials such as honeycomb ceramics or saddle packing, with pressure reductions up to 20%. Power requirements for the system include a 15 kW main fan, a 5.5 kW purge fan, and a burner capacity of 100,000 kcal/h, operating on LNG or natural gas.

For dimensional reference, the combustion chamber has an outer diameter of 2530 mm and a height of 1875 mm, and it can be produced in either round or square shapes. The Bed RTO equipment adheres to ISO 9001 standards and is designed for flow rates between 10,000 and 40,000 m³/h. Additionally, integrated PLC and Edge-IoT systems offer real-time monitoring and fault prediction to ensure safe operation.

Bed RTO Regenerative Thermal Oxidizer Features

1. Reliable Automated Control System
   This traditional structure RTO utilizes a PLC-based automatic control system that ensures stable and consistent operation. The system demonstrates high reliability through its precisely programmed logic and robust hardware components. Automated monitoring and adjustment functions maintain optimal performance throughout various operating conditions. This design approach provides operators with dependable long-term service with minimal unexpected downtime.
2. Efficient Regenerative Heat Exchange
   The system is configured with multiple regenerative chambers filled with high-performance ceramic media. These ceramics directly facilitate heat exchange with gas streams through their extensive surface area. This design enables rapid heating acceleration and demonstrates remarkable heat transfer effectiveness. The arrangement maximizes thermal energy recovery from combustion products, significantly improving overall energy efficiency.
3. Advanced Flow Direction Management
   Multiple poppet valves are employed to control and switch gas flow directions within the system. These valves operate using cylinder-driven mechanisms that ensure quick and precise switching actions. Specially engineered for durability, the valves exhibit excellent resistance to high-temperature environments. This configuration enables effective alternation between heat storage and release functions across different chambers.
4. Customizable Configuration Flexibility
   Equipment dimensions and specifications can be fully customized according to actual application requirements. The modular design approach allows for adaptation to specific spatial constraints and operational needs. This flexibility extends to transportation considerations, where the system can be configured for convenient shipment and installation. Customers receive tailored solutions that precisely match their facility parameters and process demands.
5. Robust Operational Adaptability
   The system demonstrates strong adaptability to various challenging industrial conditions. It effectively handles exhaust gases featuring complex compositions and high concentration levels. This versatility makes it suitable for applications across diverse industries with varying emission characteristics. The design maintains consistent performance even when processing gases with fluctuating concentrations and compositions.

Bed RTO Regenerative Thermal Oxidizer Benefits

• Compact Space-Saving Design
  The Bed RTO system features a highly integrated structure with minimal footprint requirements. Its compact layout optimizes space utilization while maintaining full functionality. The streamlined design reduces overall installation area without compromising performance. This makes it particularly suitable for facilities with limited available space.
• Smooth and Stable Operation
  This system ensures exceptionally stable performance through precisely controlled operational processes. The absence of abrupt switching actions eliminates pressure fluctuations and mechanical impacts. Continuous and consistent operation minimizes vibrations throughout the system. This smooth functioning contributes to extended equipment lifespan and reduced maintenance needs.
• Extended Critical Component Longevity
  Key components are manufactured from premium wear-resistant materials engineered for durability. The system's balanced operational design significantly reduces stress on critical parts. Enhanced protection mechanisms prevent premature wear and tear of essential elements. This results in longer service intervals and reduced lifecycle costs.
• Reduced Operational Complexity
  The system requires minimal reactive power support for stable operation. Its simplified mechanical design incorporates efficient power management features. Automated controls maintain optimal performance with lower auxiliary energy consumption. This efficiency contributes to reduced operational costs and simplified system management.
• High-Efficiency Performance
  Advanced thermal management ensures outstanding purification performance exceeding standard requirements. The system demonstrates exceptional comprehensive thermal efficiency through optimized heat recovery. Effective combustion organization and heat exchange mechanisms maximize energy utilization. These combined characteristics deliver superior environmental performance with operational economy.
• Effective Filtration Protection
  Integrated filtration layers efficiently intercept oil and viscous substances in exhaust streams. This protective function prevents contaminant accumulation in critical system components. The filtration system maintains optimal gas composition for subsequent treatment processes. This enhancement ensures consistent performance while reducing maintenance frequency.
• Convenient Maintenance Access
  Twelve strategically positioned inspection doors provide comprehensive maintenance accessibility. These access points enable rapid replacement of underlying regenerative bricks when necessary. The thoughtful layout facilitates efficient servicing without major system disassembly. This design significantly reduces maintenance time and associated labor costs.
• Enhanced Safety and Drainage
  Low-position drainage outlets ensure complete removal of residual oil and liquids from the system. This feature prevents liquid accumulation that could compromise operational safety. Effective drainage protection extends equipment service life by preventing corrosion and contamination. The design contributes to overall system reliability and long-term operational stability.

Bed RTO Regenerative Thermal Oxidizer Applications

1. Chemical Processing Industry
   The regenerative thermal oxidizer for the chemical industry serves as an ideal solution for manufacturing facilities handling complex VOC emissions. They effectively process exhaust streams containing various organic compounds and solvent vapors. The technology demonstrates particular effectiveness in handling intermittent and variable load conditions common in batch processes. These systems ensure reliable compliance with stringent environmental regulations governing chemical production. Their robust construction withstands aggressive chemical components present in industrial exhaust streams.
2. Paint and Coating Applications
   Manufacturing facilities utilizing painting and coating processes benefit significantly from Bed RTO technology. The systems efficiently treat emissions containing solvent vapors, overspray particulates, and volatile components. Specialized filtration layers effectively capture viscous materials and oil residues common in coating operations. This technology maintains consistent performance despite fluctuating solvent concentrations during production cycles. The thermal oxidation process ensures complete destruction of complex hydrocarbon compounds.
3. Pharmaceutical Manufacturing
   Pharmaceutical production facilities employ Bed RTO systems for handling diverse solvent-based processes. The technology effectively manages emissions from formulation, synthesis, and purification operations. It demonstrates excellent adaptability to complex exhaust compositions containing multiple solvent types. The systems maintain stringent temperature control requirements for sensitive manufacturing environments. Their reliable operation ensures continuous compliance with pharmaceutical industry emission standards.
4. Printing and Packaging Operations
   Printing facilities and packaging manufacturers benefit from Bed RTO emission control systems. The technology effectively handles solvent vapors from ink application, coating, and laminating processes. It maintains consistent performance despite rapid production changes and varying solvent usage. The systems demonstrate excellent reliability in continuous operation environments typical of printing industries. Their compact design allows integration into existing production facilities with space constraints.
