The rotary valve RTO, or rotary valve regenerative thermal oxidizer, purifies waste gas by oxidizing it into oxides and water at high temperatures, achieving decomposition efficiency over 99.5% and heat recovery efficiency exceeding 97%. It consists of a combustion chamber, ceramic packing bed, and rotary valve, divided into 12 chambers for efficient gas distribution. The motor-driven valve continuously rotates, managing exhaust gas flow. Additionally, when exhaust gas concentration is high, a waste heat recovery boiler can convert waste gas into valuable resources like hot air, hot water, steam, or thermal oil.

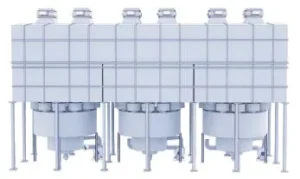

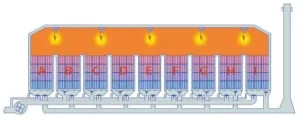

Performance Parameter Comparison of Two Types of Large-Capacity RTO Switching Valves

Performance Parameter	Rotary Valve RTO	Poppet Valve RTO
Processing Capacity	300000 Nm³/h	300000 Nm³/h
Valve Structure	Rotary Valve	Poppet Valve/Butterfly Valve
Number of Valves	3	27
Valve Switching Impact Frequency	Continuous operation without impact	6.48 million times/year
Number of Regenerative Beds	36	9
Air Volume per Chamber	20000 Nm³/h	75000 Nm³/h
Flow Cross-sectional Area per Regenerative Chamber	3300 kg	15600 kg
Number of Burners	3	5
Footprint (Length × Width)	26m × 8m	48m × 5m
Graphic

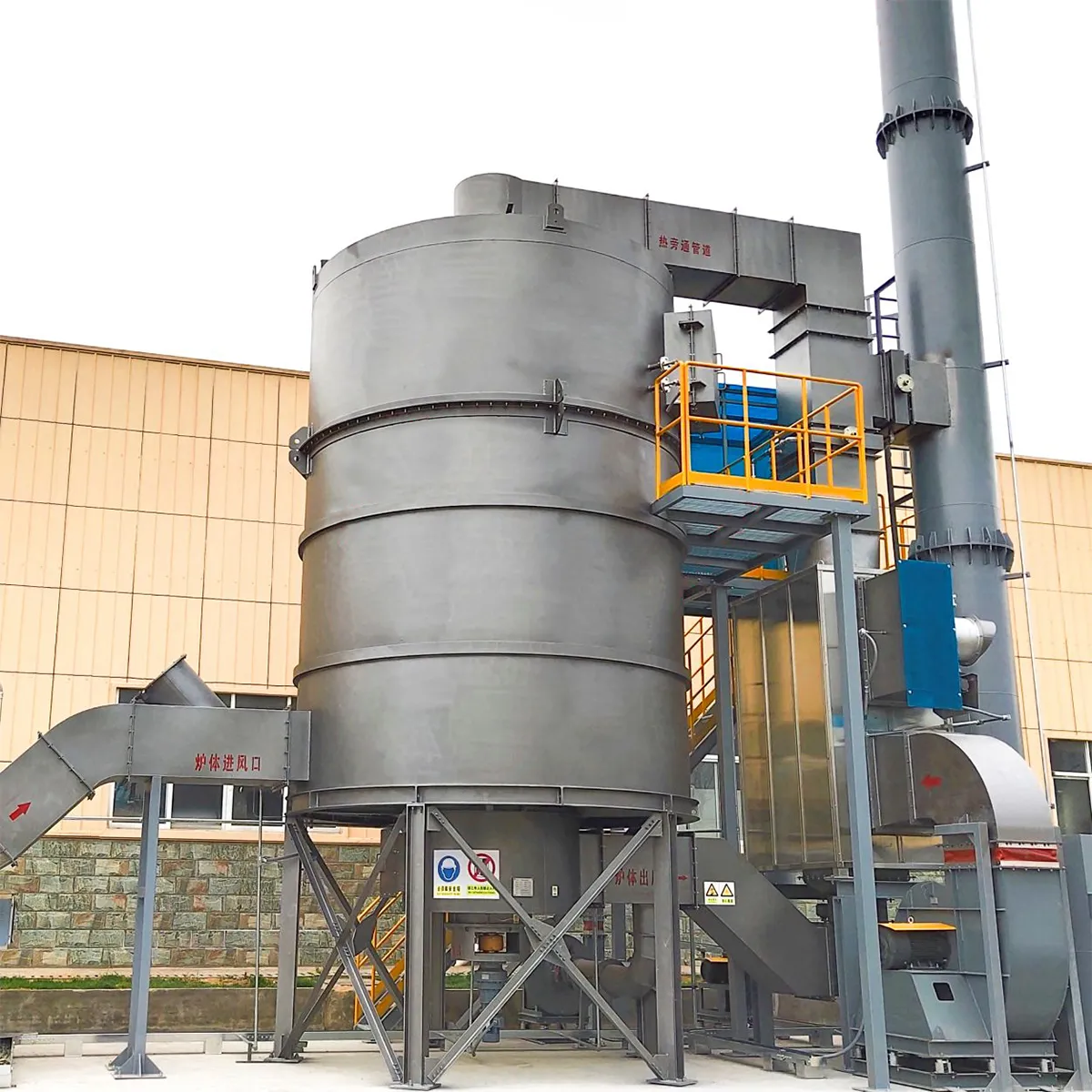

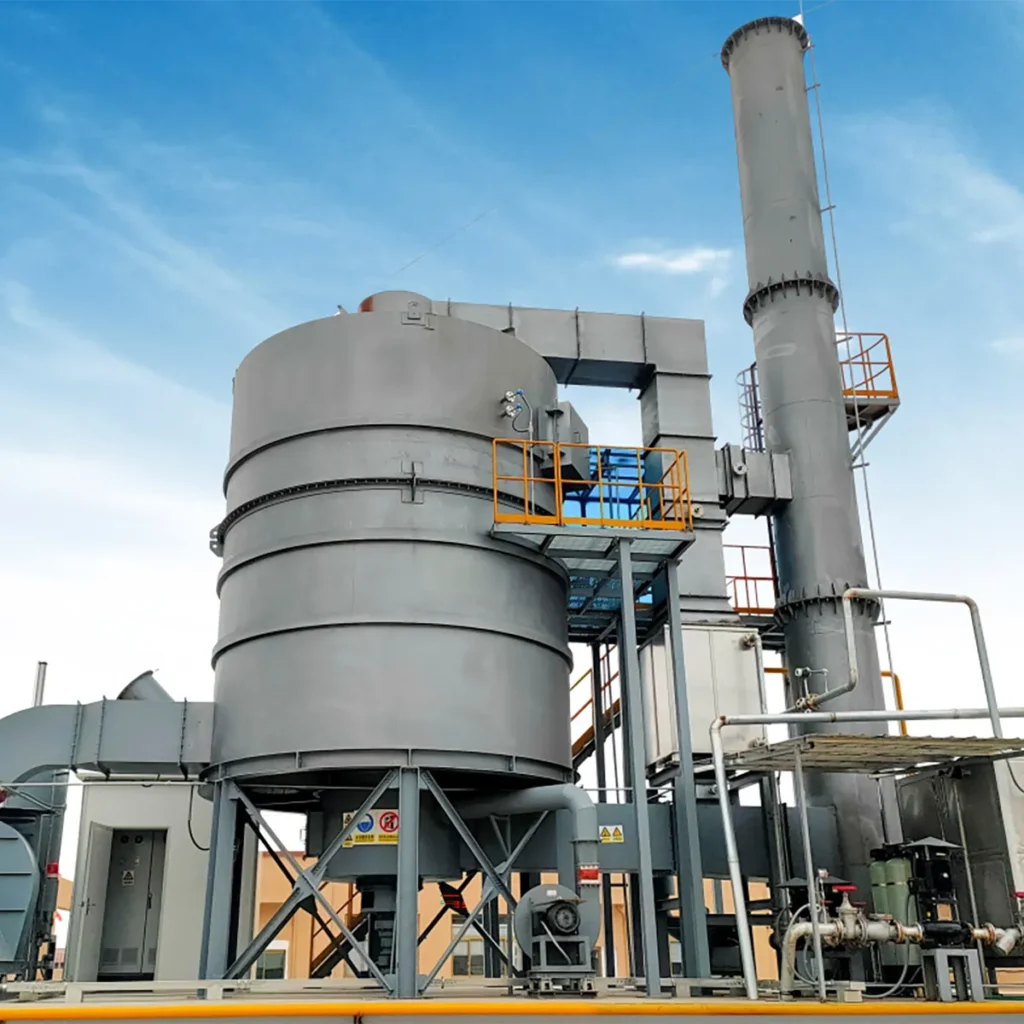

Classic Rotary Valve RTO Features

• Compact Space-Saving Design
  This system features a highly integrated structure with minimal footprint requirements. The innovative rotary valve configuration eliminates multiple traditional valves and complex piping arrangements. Its streamlined layout optimizes space utilization without compromising functionality. The compact design makes it suitable for installations where available space is limited.
• Smooth and Stable Operation
  The continuous rotational movement ensures consistent performance without pressure fluctuations. This system operates with exceptional stability due to the absence of abrupt switching actions. The smooth transition between cycles maintains steady airflow and temperature control. This operational stability contributes to reduced mechanical stress and consistent treatment efficiency.
• Extended Critical Component Lifespan
  Key elements are manufactured from premium wear-resistant materials specifically engineered for durability. The rotational mechanism significantly reduces impact forces compared to conventional switching systems. This design approach minimizes wear on sealing surfaces and moving parts. The enhanced durability translates to longer service intervals and reduced maintenance requirements.
• Reduced Operational Complexity
  The simplified mechanical design incorporates fewer moving parts than conventional systems. This configuration demands lower auxiliary power consumption while maintaining full functionality. The system operates effectively across varying load conditions without performance compromise. This efficiency contributes to lower operational costs and simplified system management.
• Superior Performance Efficiency
  Advanced thermal management ensures outstanding purification performance and energy recovery. The optimized flow distribution maintains excellent destruction efficiency across operational cycles. The effective heat regeneration system maximizes thermal recovery while minimizing fuel consumption. These combined characteristics deliver exceptional environmental performance with operational economy.

How Does a Regenerative Thermal Oxidizer Work?

Regenerative thermal oxidizers (RTOs) operate by directing air containing pollutants through a peroxide system, typically with the help of a fan. Airflow through the RTO is managed by a valve that channels it into one of two heat exchangers, which contain ceramic dielectric beds. The system includes at least two ceramic dielectric beds (either saddles or structured blocks) as heat exchangers. As the contaminated air flows through the first bed, it absorbs heat from the hot ceramic material before entering the combustion chamber.

In the combustion chamber, the air is maintained at a temperature exceeding 1500°F for a specific residence time of over 5 seconds, allowing for the oxidation of VOCs and HAPs into carbon dioxide and water vapor. The hot, clean air then passes into the second ceramic medium bed to recover heat for reuse. The cooled clean air is subsequently released into the atmosphere. The valve reverses direction every few minutes, alternating the airflow to facilitate heat transfer between the two ceramic beds. This mechanism contributes to the high fuel efficiency and low operating costs of RTOs, making them an effective solution for VOC reduction.

Regenerative Thermal Oxidizer Production Process

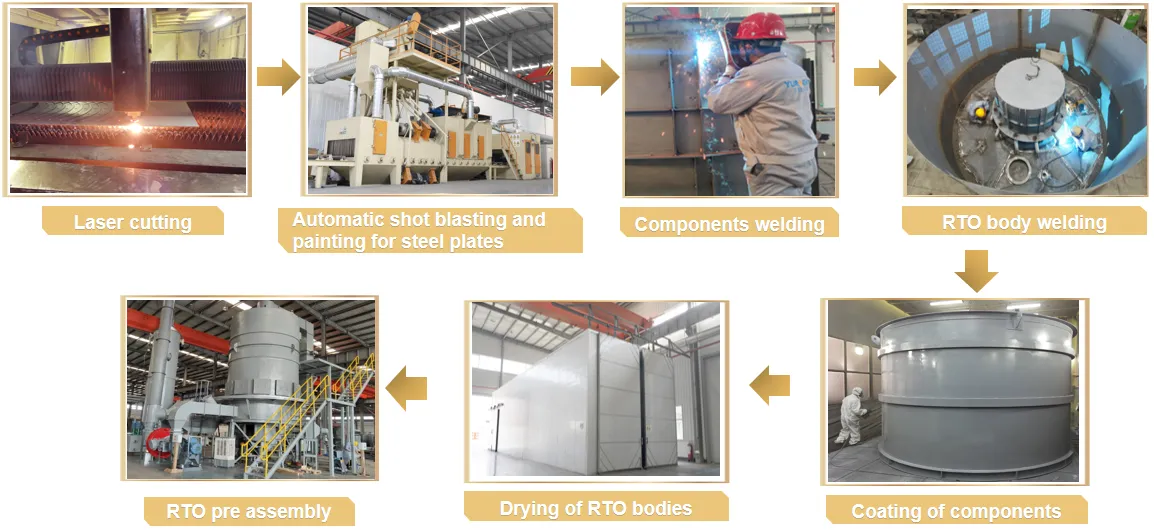

All products are manufactured in-house, beginning with laser cutting and automated shot blasting of steel plates. Components and the main RTO body are meticulously welded, followed by pre-assembly and controlled drying processes. A strict multi-stage inspection system is implemented at each phase to guarantee product quality and consistency. The entire operation is supported by integrated SAP software and a real-time progress dashboard APP, ensuring full traceability and efficient workflow management. This digitalized approach enables rapid product delivery while maintaining high manufacturing standards throughout the production cycle.
