Coating Industry Treatment Solutions
Building on the proven success of RP Techniek BV’s rotary RTO technology—already widely adopted in VOC management for automotive coating and surface painting operations—our solutions deliver robust and efficient emissions control for the coating industry.
At present, RP Techniek BV rotary RTO has been widely used in VOCs management of automobile coating, surface painting and other enterprises.
- Characteristics of waste gas: large air volume and low concentration
- Waste gas components: toluene, xylene, butanol, aromatic naphtha, methyl isobutyl ketone, butyl acetate, ethylene glycol butyl ether, ethylbenzene, acetone
- Process scheme: filtration + zeolite rotor concentration + rotary RTO
- Waste gas concentration: 200mg/m³～400mg/m³
- Emission limit: NMHC≤50mg/m³

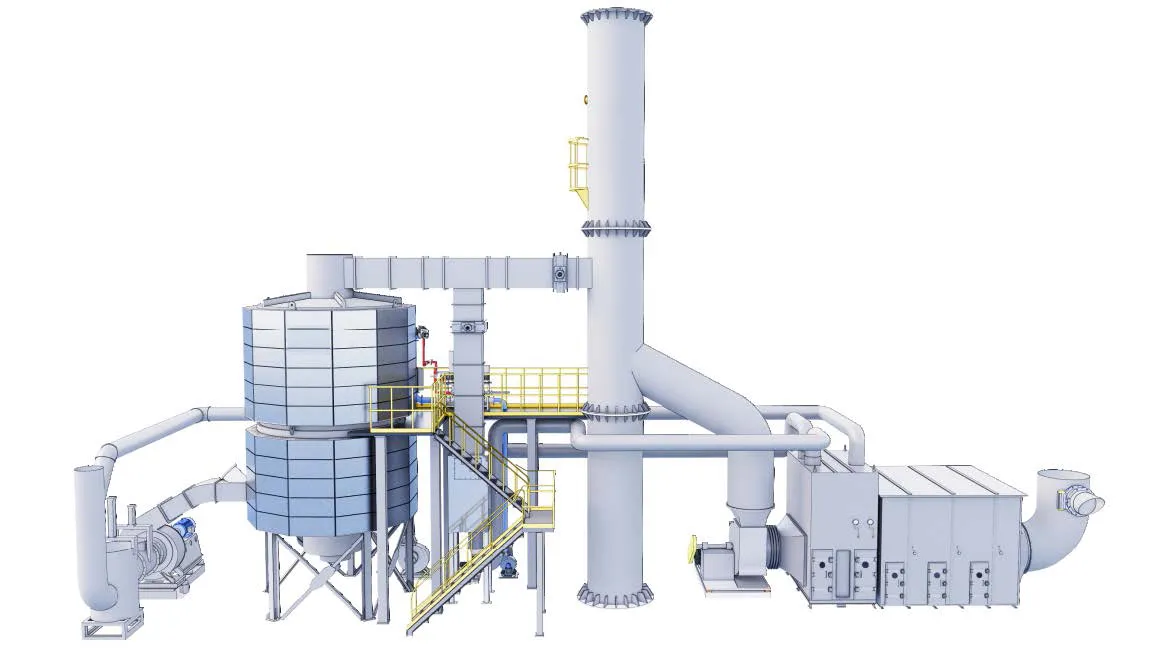

Coating Industry 3D drawing

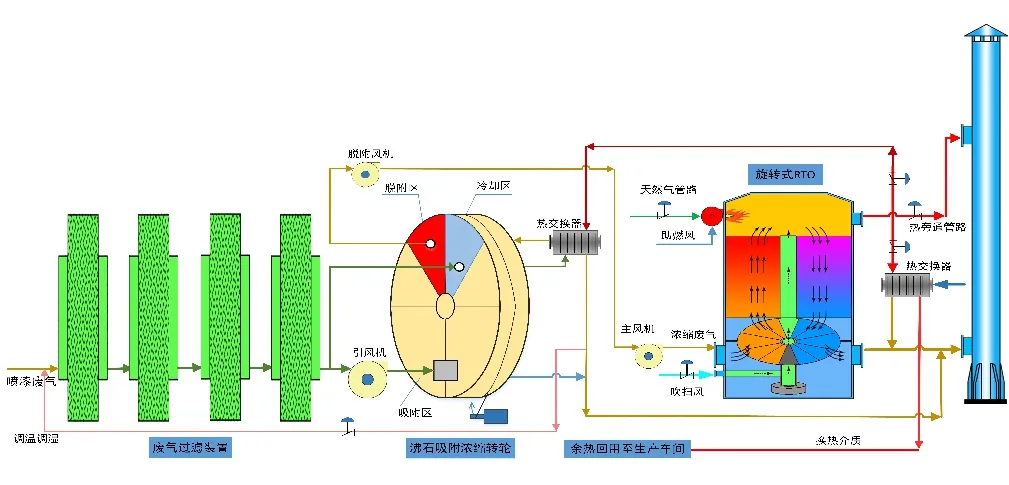

System diagram of VOCs treatment and waste heat recycling in coating industry
