Fine Chemical Industry Treatment Solutions

The RP Techniek BV Regenerative Thermal Oxidizer (RTO) is widely used across industries such as pharmaceuticals, dyes, pesticides, chemical intermediates, and new energy batteries, effectively treating process waste gases generated during production.

regenerative thermal oxidiser-application-Fine chemical industry
  • Characteristics of waste gas: the waste gas contains nitrogen-containing organic matter, sulfur and chlorine organic pollutants and inorganic acid-base waste gas
  • Source of waste gas: workshop production process tail gas and waste gas collected by sewage treatment plant
  • Waste gas components: ammonia, esters, hydrocarbons, benzene series, hydrogen chloride, hydrogen sulfide
  • Process scheme: pretreatment + RTO + SCR + desulfurization chlorine
fine chemical industry governance solutions-1

Process Scheme

To effectively manage and treat waste gas, a multi-stage treatment process is proposed. This integrated approach consists of:

  1. Pretreatment: This stage removes large particulates and adjusts the temperature and humidity of the gas stream, preparing it for subsequent treatment stages.
  2. Regenerative Thermal Oxidizer (RTO): Here, the waste gas is heated to high temperatures, oxidizing organic compounds into carbon dioxide and water vapor.
  3. Selective Catalytic Reduction (SCR): Following the RTO, SCR reduces nitrogen oxides (NOx) by using a catalyst and a reducing agent such as ammonia, converting them into nitrogen and water.
  4. Desulfurization and Dechlorination: The final steps focus on removing sulfur and chlorine compounds. Desulfurization converts sulfur dioxide (SO₂) into harmless byproducts, while dechlorination treats compounds such as hydrogen chloride, ensuring the emitted gas meets strict environmental standards.

By implementing this multi-stage process, the RP Techniek BV RTO system delivers a reliable and efficient solution for waste gas treatment in the fine chemical industry, enhancing environmental protection and supporting sustainable industrial practices.

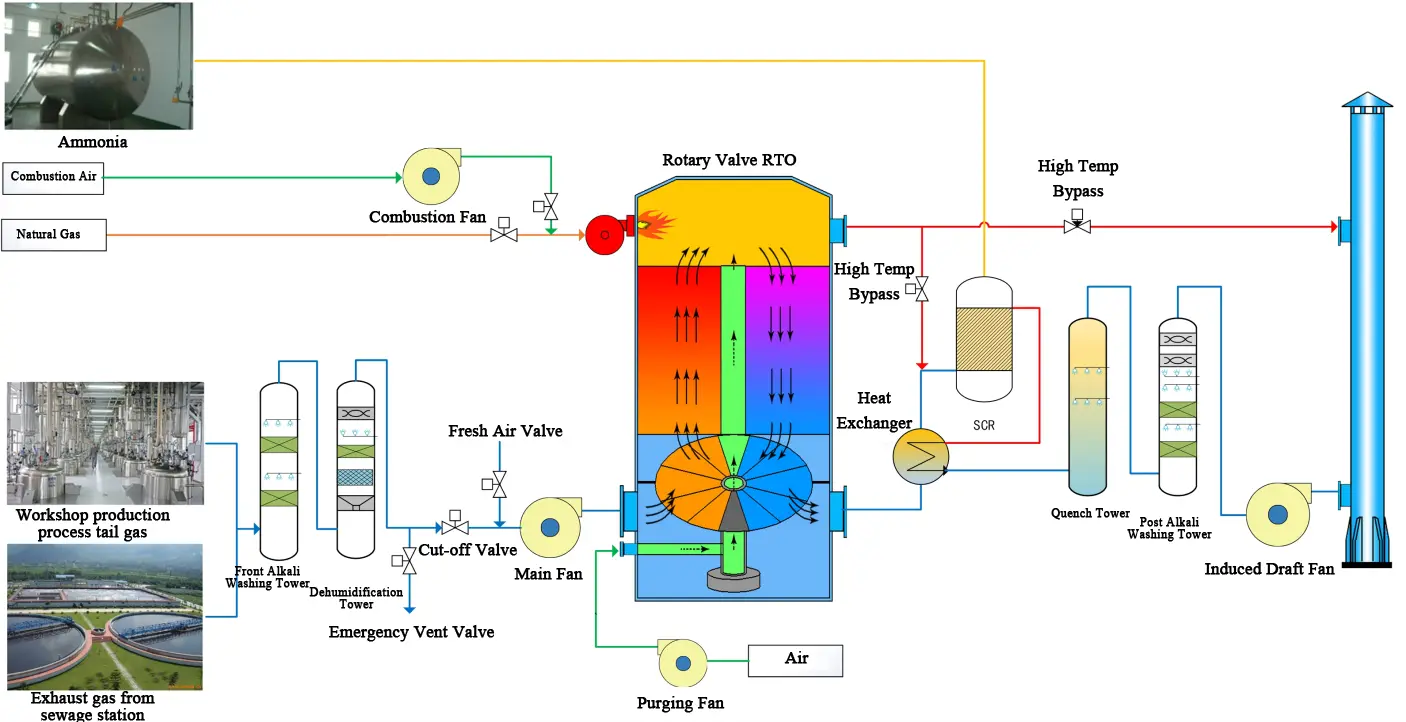

flow-chart-of-vocs-treatment-in-fine-chemical-industry

VOCs treatment process in fine chemical industry

Key Safety Technologies

Safety is the fundamental priority in the design and operation of our RTO systems. The integrated control program features self-diagnostics and multi-level safety interlocking to ensure operational reliability. Critical safety components—including flame arrestors, rupture disks, and emergency venting—are installed to prevent hazardous incidents. Functions such as differential pressure detection, combustion system safety control, and high-temperature bypass valves further enhance system protection. At our company, safety is not just a feature—it is our lifeline, embedded in every design and process. The specific measures are as follows:

Safety Measure 1 - LEL Concentration Testing

Inlet Concentration: The concentration of organic waste gas entering the purification unit should be less than 25% of its lower explosive limit

Safety Measure 2 - Flame Arresters

Flame arresters are safety devices used to prevent the spread of flames from flammable gases and flammable liquid vapors. When a flame passes through the many small channels of the flame arrester, it will be broken into several smaller flames, causing the flame temperature to drop below the ignition point, thus preventing the flame from spreading.

Safety Measure 3 - Liquid Seal Tanks

The temperature that the anti-corrosion lining of the container and the nozzle can withstand is limited, and it is not allowed to burn on the liquid surface for a long time.

Safety Measure 4 - Check Valves

When the pump is stopped, the vacuum in the vacuum pipeline is higher than that in the pump chamber, and the gas will enter the pump chamber from the exhaust port. The function of the check valve is to prevent the exhaust gas from entering the pipeline.

Safety Measure 5 - Inert Gas Fire Extinguishing

Automatically close the fire damper, turn off the fan, close the inlet and outlet valves, and fill with inert gas; cool down + cut off oxygen (it is strictly forbidden to spray water in the equipment after a fire), and start the fire-fighting equipment (fire-fighting equipment must be set up at the installation site of the organic waste gas purification device).

Safety Measure 6 - Emergency Venting

An emergency exhaust device for organic waste gas should be installed before the purification device. In the event of a failure or completion of the purification device, the direct exhaust device should be able to be opened to prevent the volatilization and accumulation of organic gas.

Safety Measure 7 - Bursting Discs

Bursting discs are generally installed at the RTO inlet or the top of the RTO furnace.

Safety Measure 8 - Burner Safety

Large and small fire systems, double cut-off valves, leakage monitoring, low nitrogen combustion

Safety Measure 9 - Fresh Air Valve and High-Temperature Bypass Valve

Fresh air valve: Introduces fresh air into the system to dilute the exhaust gas concentration.
High-temperature bypass valve: Opens when overheating occurs, dissipating excess heat and protecting the furnace.

Safety Measure 10 - Temperature Control

Safety Measure 11 - Pressure Differential Control

Differential pressure transmitters are installed at the furnace’s air inlet and outlet to monitor the thermal storage ceramic’s performance and detect blockages or damage. A negative pressure transmitter is installed at the front end of the fan to automatically control the main fan frequency and match the front end air volume.

Safety Measure 12 - Buffer Tanks

The buffer tank can also be used as a liquid sealing tank, also having the function of mixing air. Explosion venting discs can be added to also have the function of explosion venting.

Safety Measure 13 - Corrosion Prevention

Adopt material anti-corrosion technology, coating anti-corrosion technology, and pre-treatment anti-corrosion technology

Safety Measure 14 - Anti-clogging

Steam or water flushing in the furnace

Safety Measure 15 - Bottom-to-Quick Change Technology

Safety Measure 16 - Complete Drainage Technology

Safety Measure 17 - Safe Flow Rates

Most explosions within pipes are caused by the sudden volatilization of large amounts of organic liquid accumulated within the pipes, which then interact with static electricity. Pipes transporting exhaust gas from workshops must be equipped with static-conducting bridges and grounding devices. To reduce static electricity generated by the exhaust gas flow, a reasonable wind speed should be controlled, with a design of 8-10 m/s being the most suitable.

Safety Measure 18 - Electrostatic Grounding for Equipment and Piping

Electrostatic grounding of equipment and pipelines refers to connecting the equipment and pipelines through galvanized flat iron or pipe racks connected to the electrostatic conductive ground grid to conduct static electricity.

Safety Measure 19 - Low-Point Condensate Drainage

Set a 0.15% slope according to the length of the pipeline, and finally set a drain port at the lower end of the pipeline according to the length of the pipeline; set a low-point discharge port at the lowest point of the air duct and fan.

Pre-treatment System Integration Technology

Exhaust gases must undergo a series of physical or chemical pretreatment processes to meet the inlet requirements before entering a Regenerative Thermal Oxidizer (RTO). Not all exhaust streams are suitable for RTO treatment: the organic concentration should remain below 25% of the lower explosion limit, and substances prone to reaction or polymerization—such as styrene—should be avoided to prevent fouling and safety risks. Additionally, particulate levels must be kept under 5 mg/m³, especially when sticky contaminants like tar or paint mist are present. The gas stream should also exhibit stable flow, temperature, pressure, and concentration without significant fluctuations to ensure continuous and safe operation. Adherence to these guidelines is essential to maintain high treatment efficiency and avoid operational hazards.

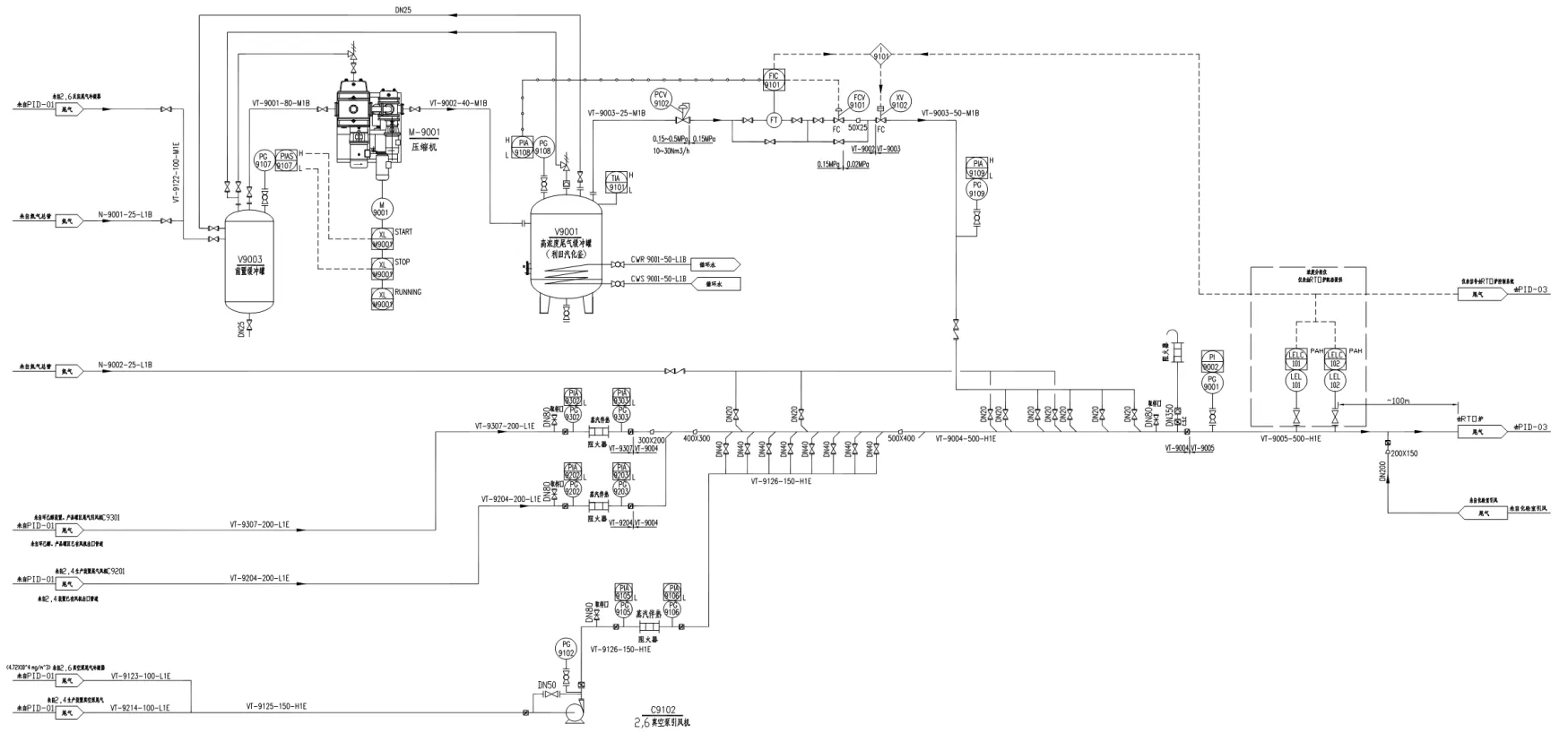

1. Exhaust gas concentration exceeds the lower explosion limit (LEL) and the high-concentration exhaust gas is gaseous at room temperature

Compress the exhaust gas using a compressor and then deliver it to the RTO for treatment in a measured quantity.

rto-Fine chemical industry solution-Pre-processing system integration technology-1

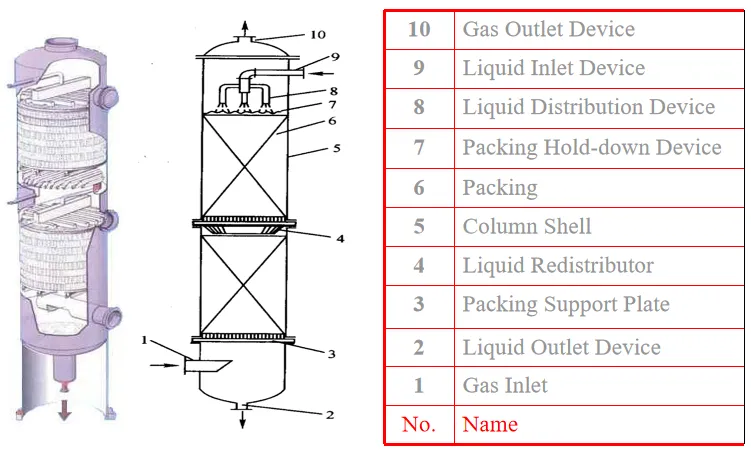

2. Exhaust gas concentration exceeds the LEL and the high-concentration exhaust gas is liquid at room temperature

Control the outlet exhaust gas concentration by condensing it in a condenser based on the properties of the VOCs in the components. Select a solvent with a high solubility for the high-concentration exhaust gas to absorb it.

rto-Fine chemical industry solution-Pre-processing system integration technology-2

3. Exhaust gas concentration exceeds the LEL

To manage streams with concentrations exceeding the LEL, oxygen content should first be reduced using inert gases like nitrogen or CO₂ to bring concentrations below LEL, followed by further dilution with air to under 25% of LEL. Ignition sources must be controlled; when using air dilution, water spray can be applied to eliminate potential sources, with spray water replacement frequency based on VOC solubility. Storage and controlled release via large atmospheric tanks or pressurized vessels is also an effective method.

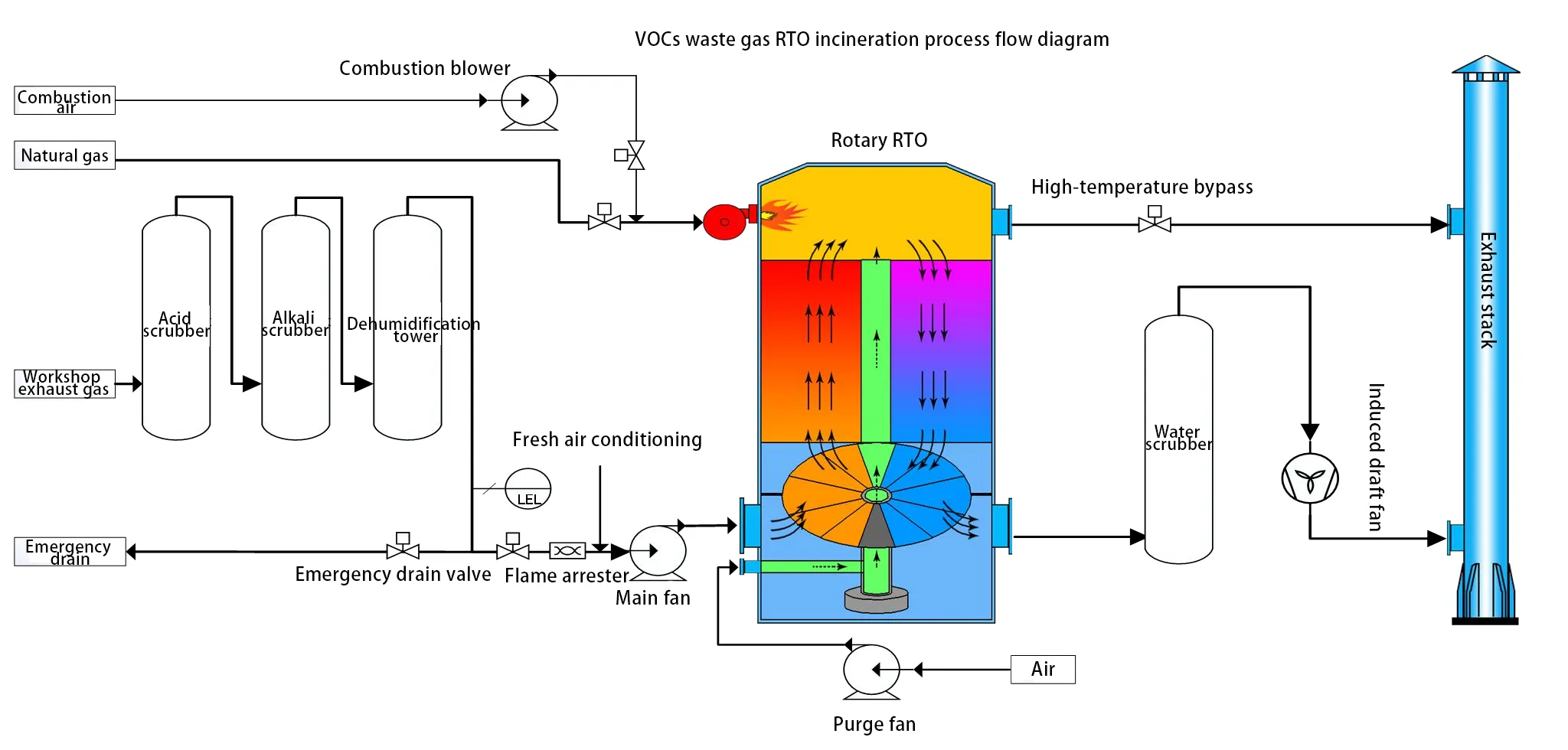

4. Exhaust gas contains inorganic acids, alkalis, and salts

Acid washing is used to remove alkaline components, alkali washing is applied to neutralize acidic contaminants, and water washing can eliminate inorganic salts from the exhaust stream.

rto-Fine chemical industry solution-Pre-processing system integration technology--4

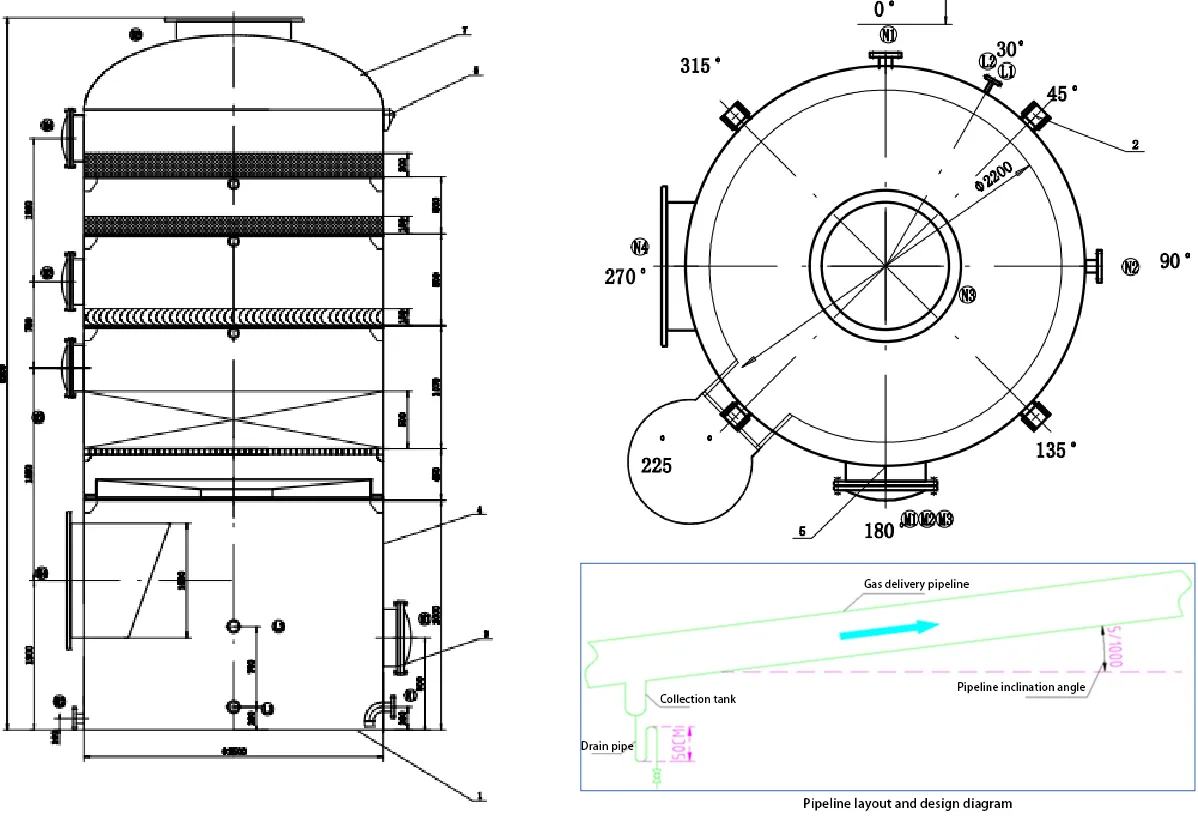

5. High water vapor content, gas condensation

For gases with high water vapor content, dehumidification equipment should be installed. Pipelines should be sloped to facilitate drainage considering the effect of temperature on saturated vapor pressure. Drain outlets should be installed at low points of fans, equipment, and stacks without compromising system negative pressure.

rto-Fine chemical industry solution-Pre-processing system integration technology-5

6. Control the concentrations of low-ignition-point exhaust gases, ammonia, and chlorine-containing organic compounds

Concentrations of low flash-point substances should be controlled to prevent combustion at the bottom of the regenerative bed. Chlorinated organic compounds should be reduced to minimize hydrochloric acid corrosion, using adsorption or absorption when necessary. When treating chlorine-containing waste gases, ammonia levels must be managed via water or acid washing to prevent ammonium salt deposition and clogging in the ceramic media.

rto-Fine chemical industry solution-Pre-processing system integration technology-6-1

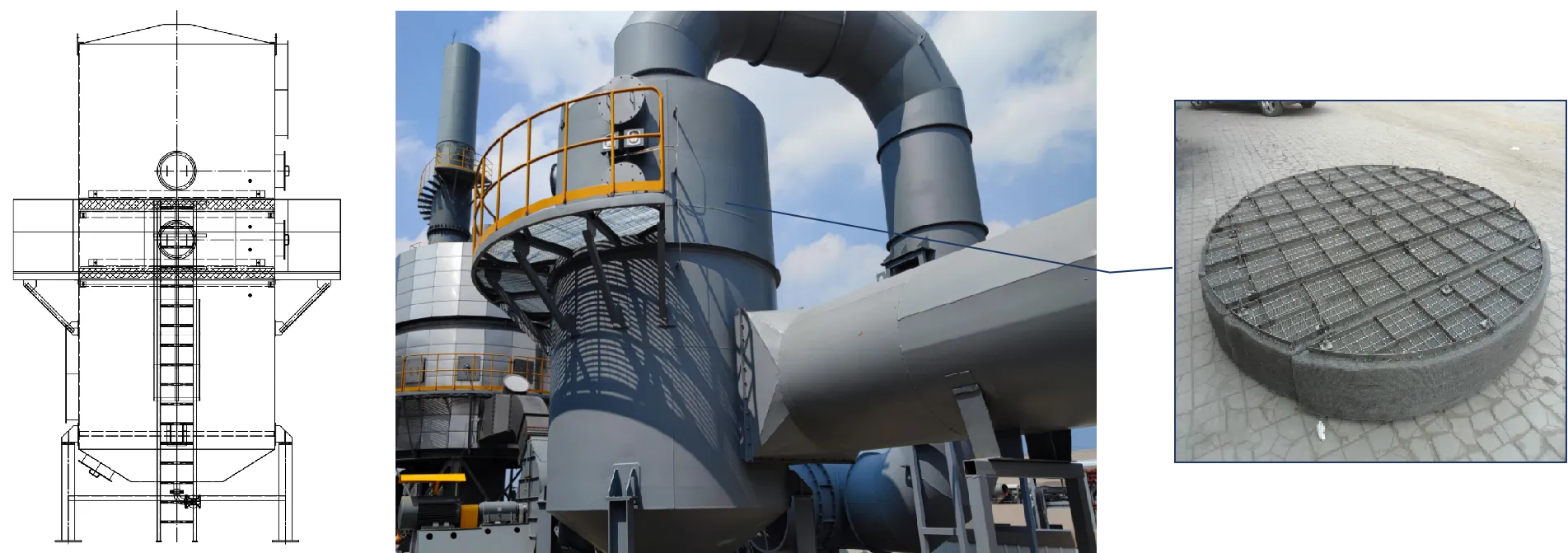

7. Viscous Matter and High-Boiling-Point Substances

The pretreatment strategy combines mechanical filtration with automated steam backwashing to intercept and remove contaminants, while temperature conditioning is applied to reduce the content of viscous components and high-boiling-point substances in the exhaust gas.

rto-Fine chemical industry solution-Pre-processing system integration technology-7-1

8. Concentration Fluctuation Buffer

Buffer tanks can also function as liquid seal vessels, providing mixing and homogenization of the gas stream while dampening concentration variations.

rto-Fine chemical industry solution-Pre-processing system integration technology-8

Post-treatment System Integration Technology

The RTO post-treatment system refers to the process in which the exhaust gas, after undergoing RTO thermal oxidation treatment, undergoes a series of physical or chemical treatment methods to ensure that the gas exiting the RTO meets emission standards. The purpose of post-treatment is to ensure that all emission indicators meet emission standards.

1. Alkali Scrubbing Unit

Adsorption of SO₂, HCl, COCl₂.

rto-Fine chemical industry solution-post-treatment system integration technology-1

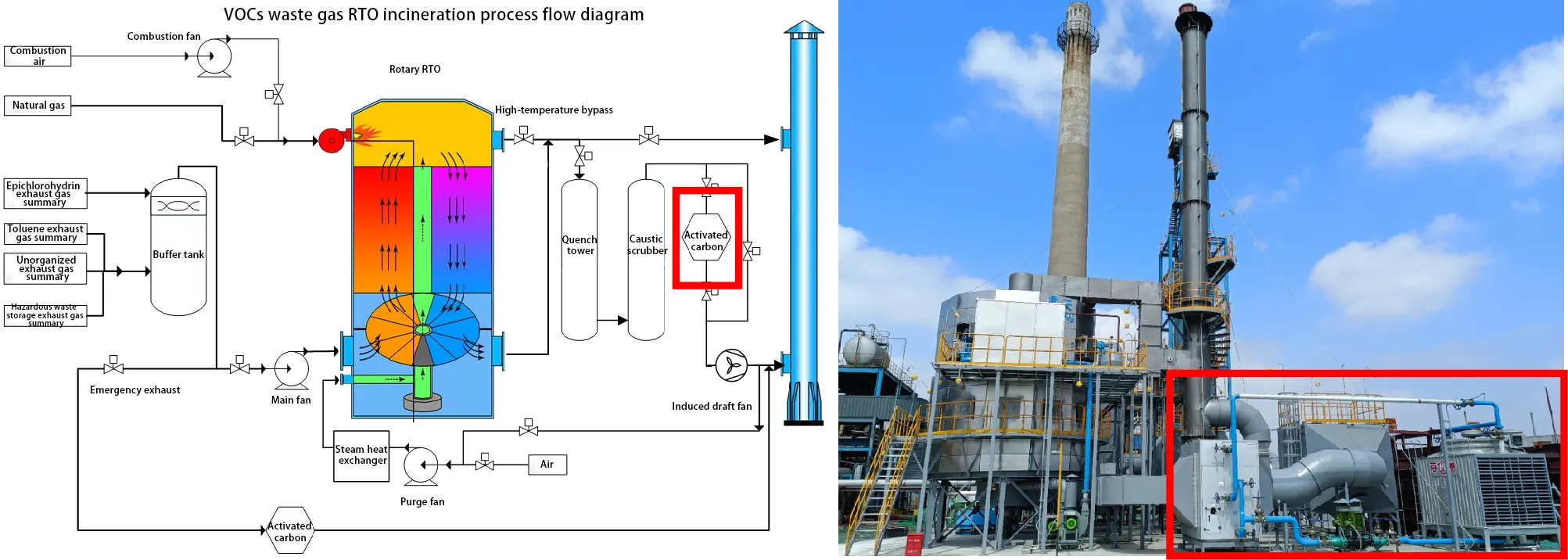

2. Activated Carbon Adsorption Unit

Adsorption of Dioxins and other substances with special emission requirements.

rto-Fine chemical industry solution-post-treatment system integration technology-2

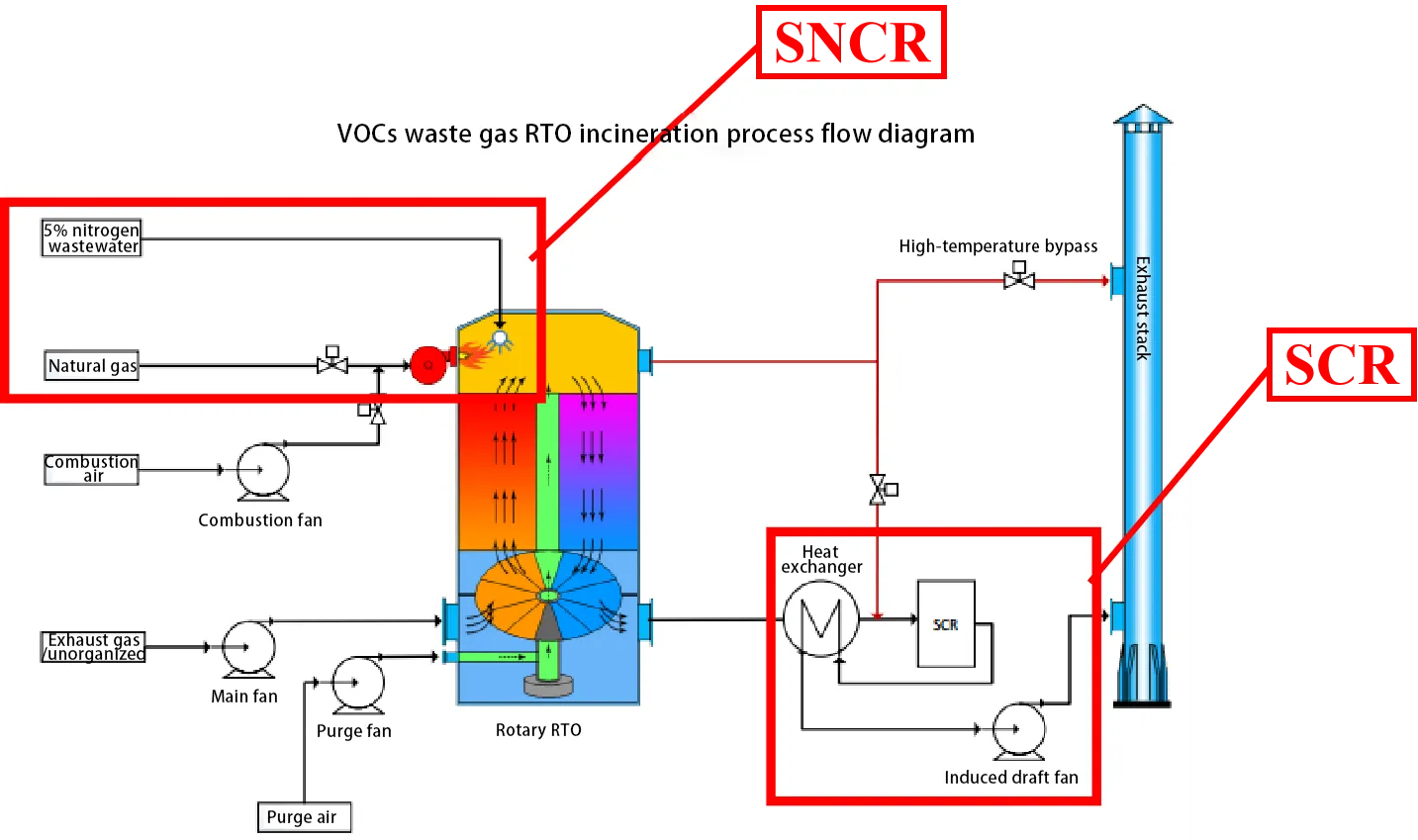

3. Denitrification Unit

SNCR Denitrification: Efficiency <60%. SNCR, without the use of a catalyst, uniformly injects an amino-based reducing agent, such as ammonia or urea, into the flue gas at temperatures between 850°C and 1100°C. The reducing agent rapidly decomposes within the furnace, reacting with NOx in the flue gas to produce N2 and H2O (with little reaction to oxygen in the flue gas), thereby achieving denitrification.

SCR denitrification: Highly efficient. SCR is the most widely used flue gas denitrification technology internationally. It is used in most power plants in countries and regions such as Japan, Europe, and the United States. It produces no byproducts, does not cause secondary pollution, has a simple device structure, and offers high removal efficiencies (over 90%), reliable operation, and easy maintenance. The SCR technology works by injecting ammonia into flue gas at a temperature of approximately 180-420°C over a catalyst, reducing NOₓ to N₂ and H₂O.

rto-Fine chemical industry solution-post-treatment system integration technology-3

Rotary RTO+SNCR denitrification+SCR denitrification=emissions meeting standards

The solution adopts internationally advanced rotary RTO technology, ensuring high purification efficiency and thermal efficiency. Wastewater containing 5% ammonia is directly sprayed into the RTO combustion chamber via atomizing guns, with temperature controlled at 850–950°C, creating SNCR high-temperature denitrification conditions achieving 30–50% NOx removal. This approach simultaneously treats ammonia-containing wastewater and performs denitrification, realizing a “waste-treats-waste” and “dual gas-liquid treatment” strategy while reducing the load on downstream SCR. For residual NOx emissions from the RTO, an advanced SCR system is integrated, forming a combined SNCR-SCR denitrification process that operates with low energy consumption and high efficiency.

Ammonium Salt Crystallization Control Treatment Technology

1. Prevention of Ammonium Salt Formation

A. Categorized Collection and Treatment

  • Waste gas containing ammonia is collected and treated separately, not mixed with chlorine- or sulfur-containing waste gas.
  • Waste gas containing chlorine is collected and treated separately, not mixed with ammonia-containing waste gas.
  • Waste gas containing sulfur is collected and treated separately, not mixed with ammonia-containing waste gas.

B. Pretreatment Measures for Source Reduction

  • For waste gas containing trace ammonia along with chlorine, sulfur, or nitrogen organics, use front-end acid washing + alkali washing + dehumidification to remove ammonia-containing components and reduce ammonium salt formation.
  • For waste gas containing both ammonia and trace HCl/SO₂, apply front-end alkali washing + dehumidification to remove acidic components and minimize ammonium salt generation.

2. Mitigation of Ammonium Salt Formation

To reduce ammonium salt formation, front-end pipelines can be heated via preheating, trace heating, hot air purging, and insulation to elevate the temperature considering the decomposition temperature of ammonium salts.

3. Mitigation of Ammonium Salt Clogging

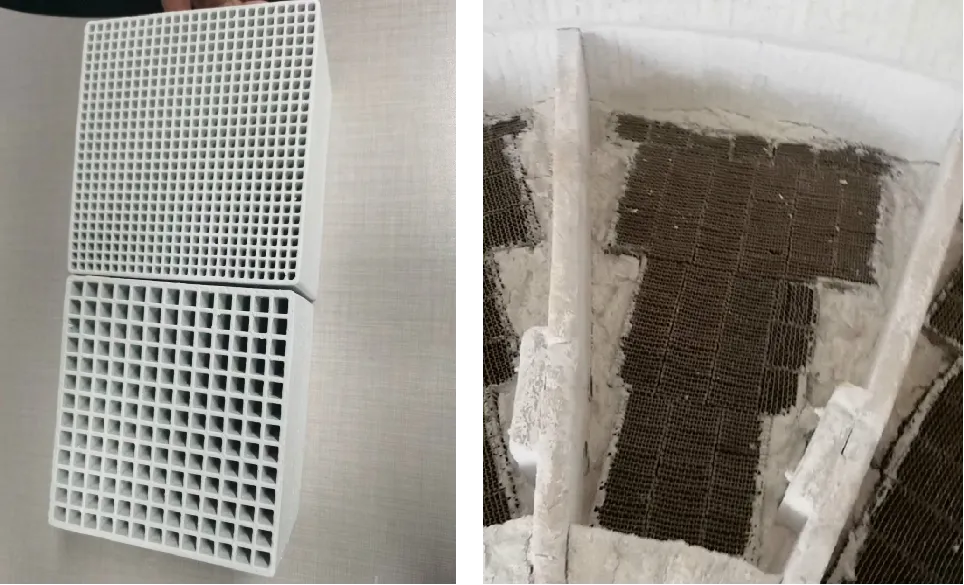

Use clog-resistant regenerative ceramics: the upper five layers of the regenerative chamber employ honeycomb ceramics, while the bottom layer uses large-aperture ceramic media. This combination ensures excellent heat storage performance while reducing the risk of clogging.

rto-Fine chemical industry solution-Ammonium salt crystallization control treatment technology-1

4. RTO Ammonium Salt Cleaning Design

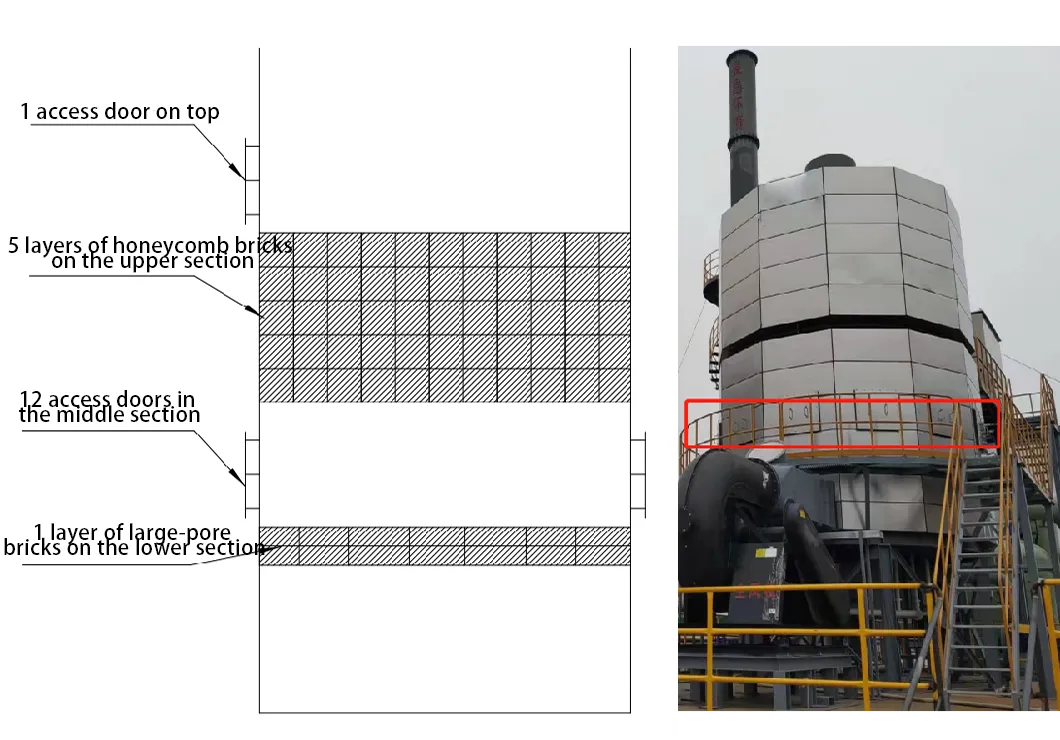

A. Quick-Disassembly Access Door Design

rto-Fine chemical industry solution-Ammonium salt crystallization control treatment technology-2

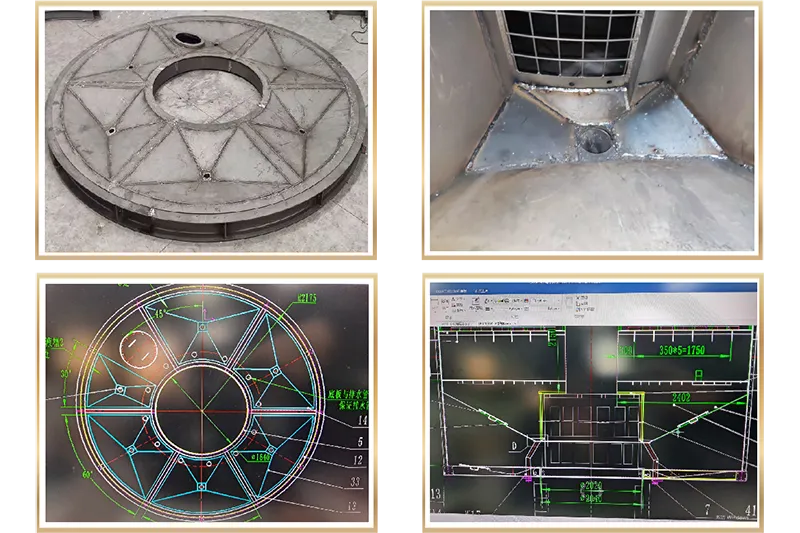

B. Complete Liquid Drainage Structure of the RTO Furnace

rto-Fine chemical industry solution-Safety Measure 16

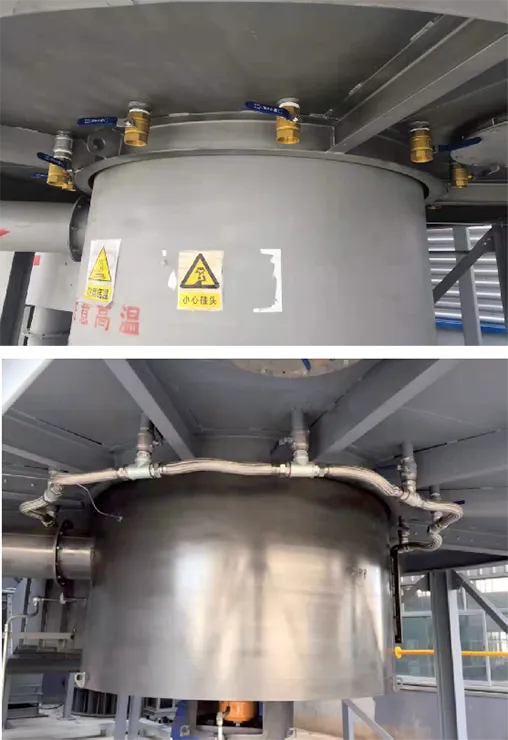

C. Bottom Drainage Design of the RTO

rto-Fine chemical industry solution-Ammonium salt crystallization control treatment technology-3

Anti-corrosion Technology

In recent years, regenerative thermal oxidation (RTO) incinerators have gained widespread recognition and application as one of the most effective methods for treating organic waste gas. This has also exposed many pressing challenges and challenges that require innovation: balancing the investment and operating costs of RTO equipment with the selection of corrosion-resistant structural materials and corrosion tolerance.

After years of hard work and extensive experimentation, RP Techniek BV has developed a comprehensive anti-corrosion solution. This encompasses waste gas source-to-process control, including controlling chlorine and water content; preheating the inlet air; heating the purge air; operating the rotating motor at reduced frequency; and reducing the number of regenerative bricks. Details are shown in the diagram to the right.

1. Material corrosion testing

2. Coating corrosion protection technology

3. Specialized equipment structure design

4. Specialized pipe material selection

5. Damper material selection

6. Other component material optimization

7. Regenerative brick layout and insulation optimization

8. Activated carbon box material and structure optimization

9. Corrosion protection improvements and optimization

10. Alkali replenishment system optimization

Low Nitrogen Technology

SNCR

SNCR denitrification offers multiple advantages: it is a clean technology without generating solid or liquid pollutants or by-products, thus avoiding secondary pollution; it demonstrates good economic performance due to the absence of expensive catalysts, resulting in lower investment and operating costs; and the system is simple—mainly consisting of a reductant storage and injection system, including tanks, pumps, injection lances, and necessary piping and instrumentation. Thanks to its simple equipment requirements, SNCR can be installed during a routine maintenance period with a short shutdown duration of approximately 15 days, minimizing impact on operations.

rto-Fine chemical industry solution-post-treatment system integration technology-5

SNCR Denitrification Process Schematic Diagram

SCR

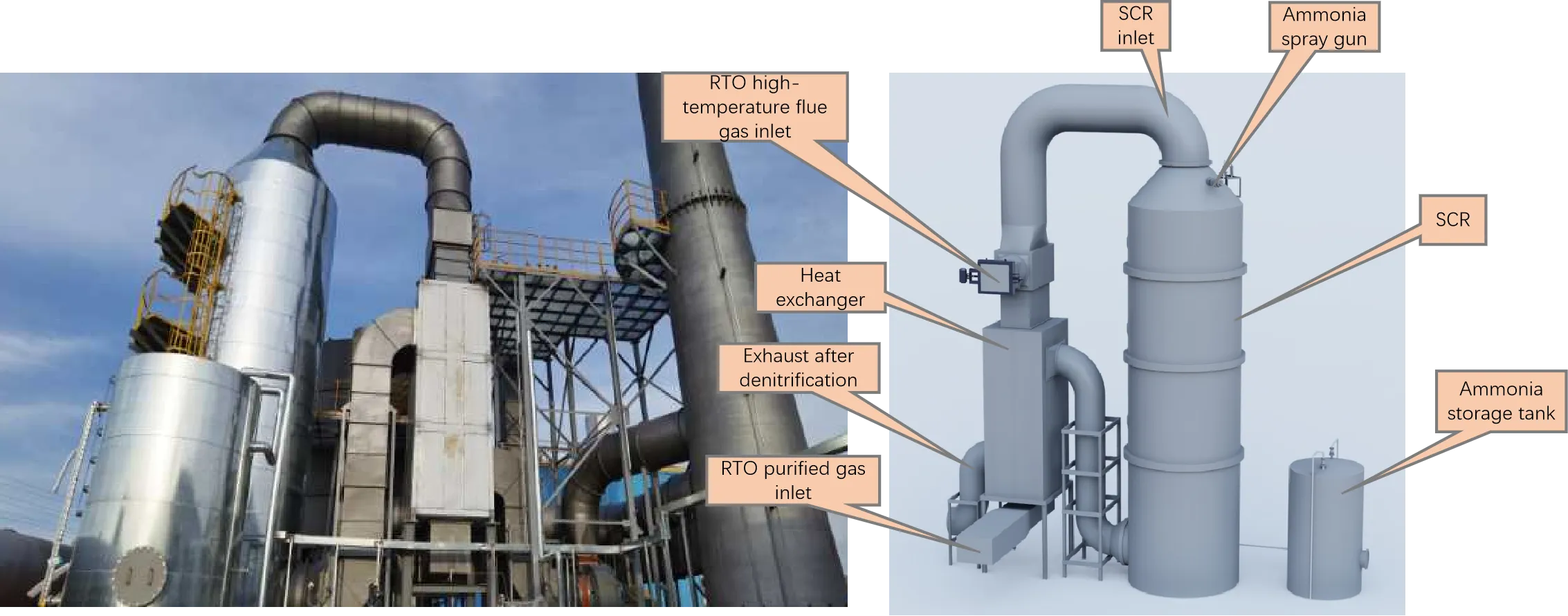

The SCR system includes the flue, SCR reactor, catalyst, ammonia injection system, denitrification agent storage and supply system, maintenance instrumentation and control system, and electrical system. The catalysts used in SCR are mostly based on TiO2, with V2O5, V2O5-WO3, or V2O5-MoO3 as the active ingredients. They are manufactured in three types: honeycomb, plate, or corrugated. SCR catalysts used in flue gas denitrification can be categorized as high-temperature catalysts (345°C to 590°C), medium-temperature catalysts (260°C to 380°C), and low-temperature catalysts (80°C to 300°C). Different catalysts have different optimal reaction temperatures.

rto-Fine chemical industry solution-post-treatment system integration technology-4

SCR Denitrification Unit Diagram

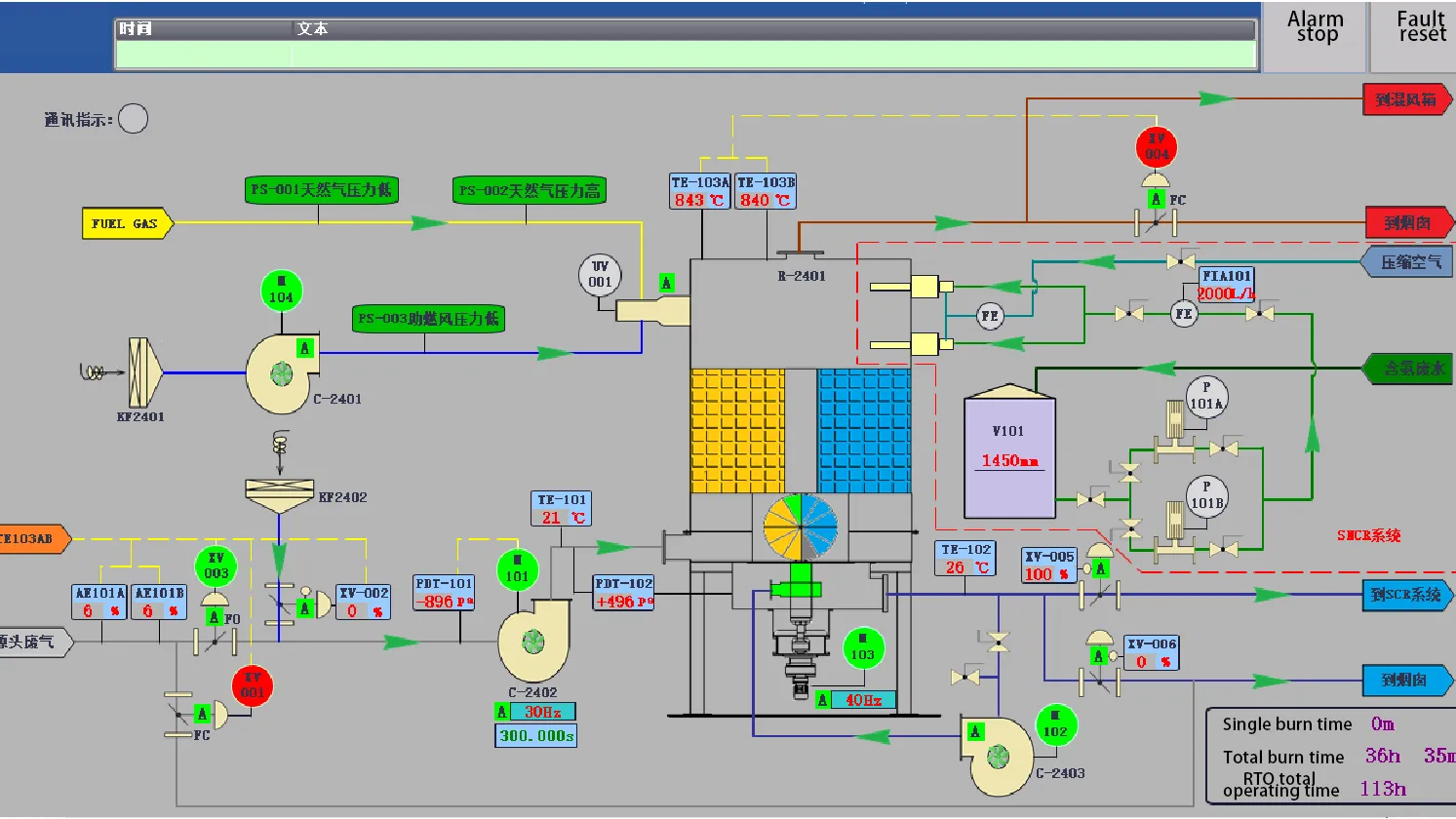

RTO+SNCR Operation Interface

rto-Fine chemical industry solution-rto+sncr

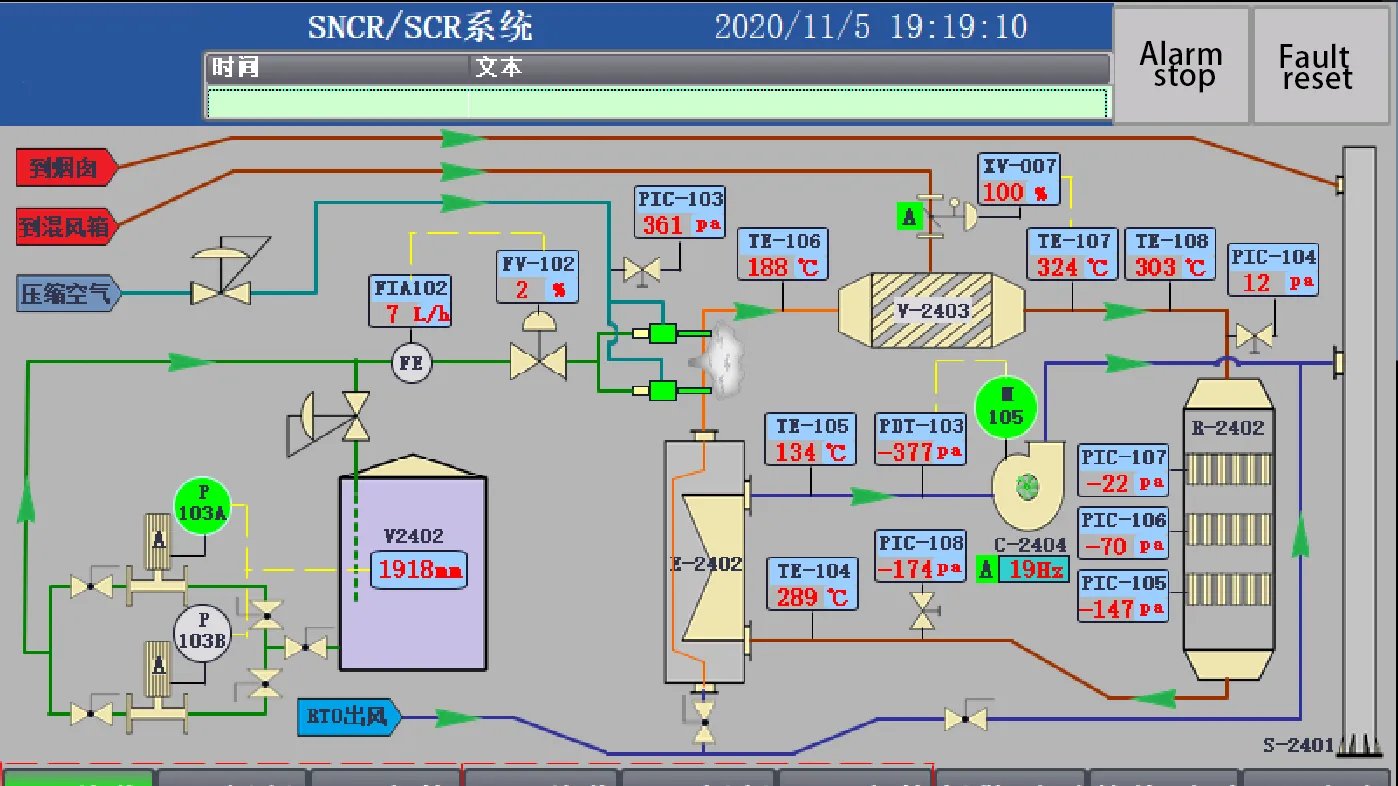

RTO+SCR Operation Interface

rto-Fine chemical industry solution-rto+scr

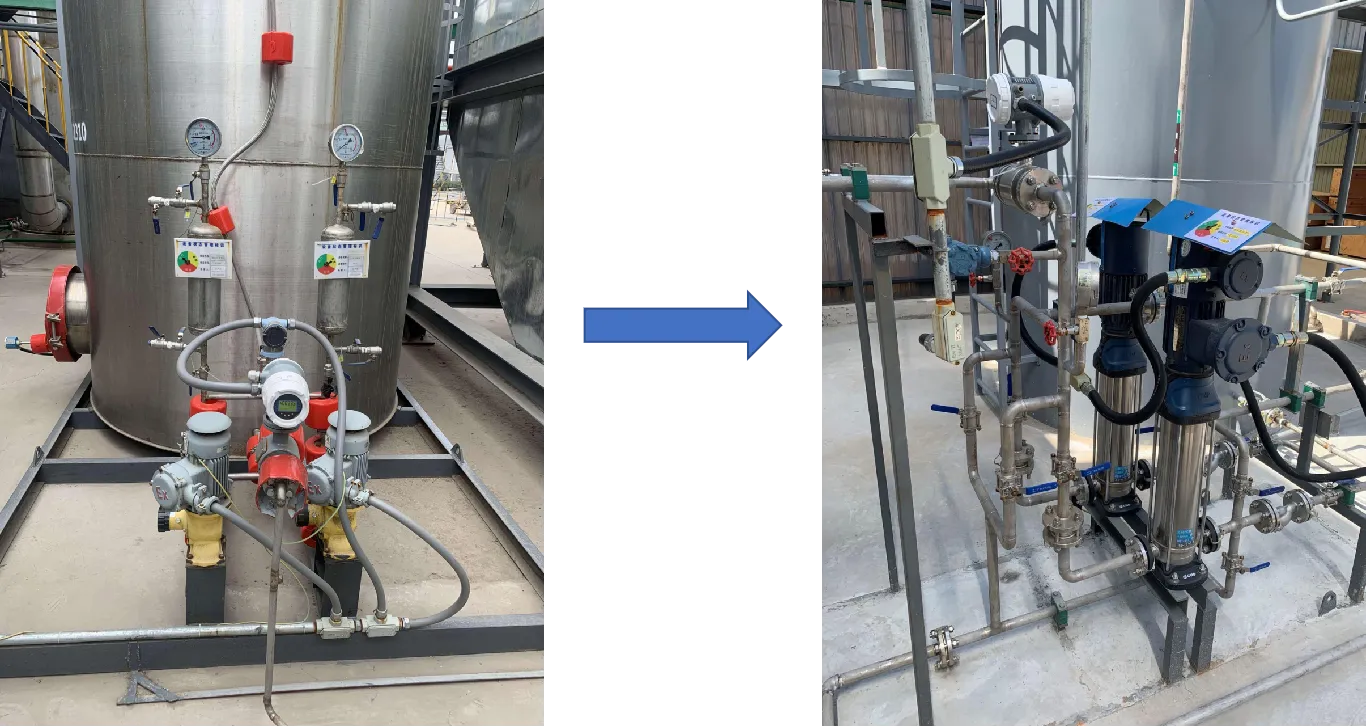

Ammonia injection system optimization

rto-Fine chemical industry solution-Ammonia injection system optimization

A back-pressure valve is used to regulate the outlet pressure of the ammonia pump. Once pressure is adjusted, no modifications are required, allowing for a more streamlined skid installation.
