Limestone-Gypsum Desulfurization, SNCR Denitrification, and Wet Electrostatic Precipitation for Carbon Materials Industry Furnace Off-Gas

Case Study · Industrial Emission Control

How a leading pre-baked anode producer achieved 99.5% desulfurization and 95% dust removal from combined calcination and sintering furnace off-gas — deploying an integrated limestone-gypsum FGD system (L/G=29.7, 5-layer spray) plus BLWESP-540 wet electrostatic precipitator to treat 400,000 Nm³/h of highly corrosive high-SO₂ off-gas while managing the critical CO explosion risk inherent in carbon materials processing.

Pre-Baked Anode Production Off-Gas
Limestone-Gypsum FGD
SNCR Denitrification
Wet Electrostatic Precipitator
Carbon Anode Sintering

99.5%
Desulfurization
SO₂ 6,000→35 mg/Nm³
95%
Dust Removal
Wet ESP ≥95% efficiency
400,000
Nm³/h
Combined Flue Gas Volume
50%
SNCR Denitrification
NOx 50–100→≤100 mg

01 — Industry Background

Carbon Materials Production: A Strategically Critical Sector With Demanding Emission Challenges

Carbon materials are indispensable to the global industrial economy. Pre-baked anodes serve aluminium electrolytic smelting as the primary consumable electrode material; graphite electrodes serve electric arc furnace steelmaking; carbon-carbon composites serve aerospace, high-performance braking systems, and semiconductor manufacturing; and new carbon materials including graphene-based composites, carbon nanotubes, and carbon fibre are increasingly central to new energy vehicle components, energy storage systems, and lightweight structural materials.

The growth of renewable energy — solar panels, wind turbines, and grid-scale batteries — is driving sustained demand growth for high-quality carbon materials, particularly for storage electrode applications and lightweight structural components. The global carbon materials sector is simultaneously expanding its market scope and facing increasing regulatory pressure on its production processes, particularly on the high-SO₂ and high-particulate emissions from the calcination and sintering furnaces that are central to carbon material production.

The enterprise in this case study is a specialist pre-baked anode production enterprise, covering a 70,000 m² site with 8 calcination furnaces, 48 sintering furnaces, 2 lines of 150,000 t/year forming equipment plus associated environmental protection equipment (waste heat power generation waste heat power generation included), and annual production capacity of 300,000 pre-baked anodes. The facility is a provincial-level leading enterprise in the aluminium pre-baked anode sector, serving aluminium smelters as a critical supply chain component. With tightening environmental regulations, the facility’s flue gas purification system has become a strategic investment priority: limestone-gypsum wet FGD combined with wet electrostatic precipitation is now the standard configuration being deployed across the sector to address the multi-pollutant emission challenge from carbon material sintering furnaces.

The context of wet FGD for this application: limestone-gypsum FGD is one of the most widely applied flue gas desulfurization technologies globally. Its principal characteristics are: high desulfurization efficiency; wide applicability; relatively low limestone-to-calcium ratio; technically mature; and by-product gypsum can be sold as a commercial product. The system includes a flue gas system, SO₂ absorption system, absorbent preparation system, and gypsum treatment system. Wet electrostatic precipitation (WESP) is a high-efficiency flue gas purification technology primarily for treating fine particulate and acid mist in the post-FGD gas stream, reducing combined outlet pollutant concentration to below 5 mg/Nm³ in the best cases.


02 — Pollution Profile

Calcination + Sintering Combined Off-Gas: Extreme SO₂ at 6,000 mg/Nm³ Plus CO Explosion Risk

This project treats mixed off-gas from both the calcination furnaces and the sintering furnaces. After cooling the calcination furnace off-gas to a suitable temperature and capturing coke particulates, all furnace off-gas is combined and directed to the new desulfurization system and wet electrostatic precipitator for desulfurization and dust removal treatment. With the existing sintering furnace off-gas system also combined into the new system, cleaned flue gas is discharged directly from the stack via the induced draft fan. The treatment system uses one DCS control system and shares the fan system, slurry system, slurry preparation system, gypsum dewatering system, and slurry treatment system.

Two furnace types contribute to the combined flue gas stream: the calcination furnace (calcination furnace) and the sintering furnace . The combined standard flue gas volume is 230,000 Nm³/h; at process conditions (200°C), the volume is 400,000 Nm³/h. Natural gas fuel consumption is 4,500 m³/h. The critical emission challenge is the SO₂ concentration at 6,000 mg/Nm³ at the FGD inlet — one of the highest SO₂ inlet concentrations in any of the 30 case studies in this brochure. This extreme SO₂ loading drives the very high L/G ratio (29.7) and 5-layer spray configuration required in the FGD absorber.

CO explosion risk is the unique safety dimension of carbon materials processing that does not appear in other industrial off-gas treatment applications. Carbon calcination and sintering processes generate CO as a combustion by-product; if the CO concentration in the combined flue gas stream rises above the lower explosive limit (≤250 mg/Nm³ interlock threshold), there is a risk of explosion in the wet electrostatic precipitator where the high-voltage electrical field could ignite a flammable CO-air mixture. This requires: continuous CO monitoring at the wet ESP inlet linked to an automatic wet ESP shutdown interlock when CO exceeds the threshold.

Parameter Initial Concentration Designed Outlet EU IED / NER Limit
NOx 50–100 mg/Nm³ ≤100 mg/Nm³ IED 2010/75/EU ≤100 mg/Nm³
SO₂ (at FGD inlet) 6,000 mg/Nm³ ≤35 mg/Nm³ Dutch Activities Decree ≤35 mg/Nm³
Particulate matter (PM) 100 mg/Nm³ ≤5 mg/Nm³ Dutch NER ≤5 mg/Nm³
CO (wet ESP interlock) Variable; explosion risk above 250 mg/Nm³ Wet ESP auto-shutdown at 150–250 mg/Nm³ Safety interlock required
Standard flue gas volume 230,000 Nm³/h
Process flue gas volume 400,000 Nm³/h at 200°C
Furnace exit temperature 200°C (calcination); 170°C (sintering/desulfurization)
O₂ content 12–15% actual (11% baseline)
Moisture content 100 g/Nm³

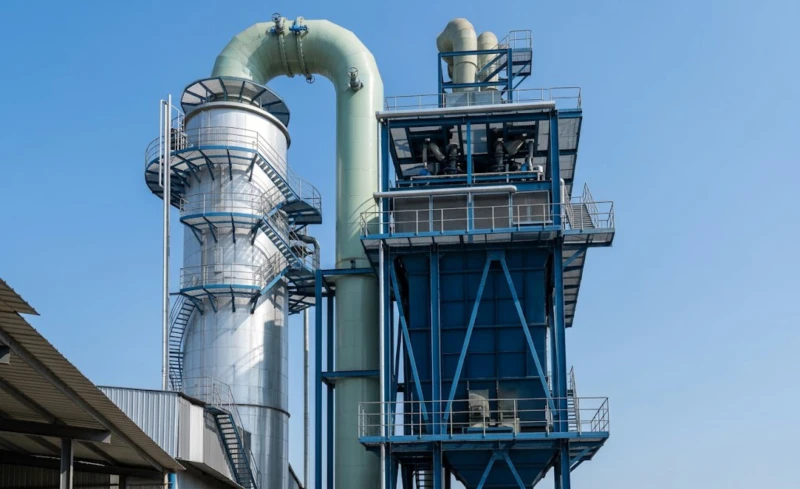

Application scenarios of limestone-gypsum FGD SNCR denitrification and wet electrostatic precipitator system for carbon materials industry pre-baked anode calcination and sintering furnace combined off-gas treatment achieving 99.5 percent desulfurization and 95 percent dust removal


03 — Treatment Solution

Limestone-Gypsum FGD + BLWESP-540 Wet ESP: Combined System Exploiting the Synergy Between Wet Scrubbing and Electrostatic Precipitation

The combination of limestone-gypsum wet FGD and wet electrostatic precipitation was selected because the two technologies are complementary and mutually reinforcing for this application. The FGD stage primarily removes SO₂ acid gas at high efficiency, with secondary co-capture of fine particulates in the spray droplets. The WESP stage primarily removes fine particulates and acid mist that pass through the FGD mist eliminators, achieving the sub-5 mg/Nm³ PM outlet that cannot be reliably achieved by FGD alone. The combination delivers ultra-low emission compliance for both SO₂ and PM that neither technology can achieve individually in this application context.

The project constructs one new desulfurization tower and one new wet electrostatic precipitator. The control system uses one DCS system shared across the two unit operations, with shared fan, slurry, slurry preparation, gypsum dewatering, and slurry treatment systems. The process flow subsystems are: fan system; CO monitoring system; slurry absorption system; slurry preparation system; gypsum dewatering system; process water system; and electrical system.

FGD Absorber Tower (φ8.4–6.4 m, 400,000 Nm³/h)

The limestone-gypsum FGD absorber is specified for the full combined flue gas volume and the extreme SO₂ inlet. Key parameters: flue gas volume 400,000 m³/h; flue gas temperature 200°C at inlet; SO₂ inlet concentration 6,000 mg/Nm³; SO₂ outlet concentration 35 mg/Nm³; calcium-to-sulfur ratio 1.03; gas velocity <3.5 m/s; tower internal diameter φ8.4/6.4 m (stepped); absorption tower height 31.5 m; liquid-to-gas ratio 29.7; spray layers 5; single pump flow 1,400 m³/h; slurry settling time 5 h; limestone operating consumption 2,150 kg/h (maximum); gypsum production 3,850 kg/h (maximum, i.e. approximately 3.85 t/h); gypsum moisture content ≤15%; mist eliminators: 2-layer screen type; intermediate limestone storage capacity 180 m³ (7-day autonomy at 180 m³). The FGD slurry material is 2205 duplex stainless steel, selected for its corrosion resistance to the high-chloride, high-sulfate slurry environment of carbon materials processing off-gas.

Wet Electrostatic Precipitator (BLWESP-540, 320,000 Nm³/h)

Post-FGD gas at approximately 60°C enters the BLWESP-540 wet electrostatic precipitator. The WESP captures fine particulates, acid mist, and sub-micron aerosols not removed by the FGD mist eliminators. Key parameters: WESP model BLWESP-540; tower-external configuration; gas flow bottom-entry, top-exit (direct through-flow); purification efficiency ≥95%; inlet mixed pollutant concentration 100 mg/m³; outlet mixed pollutant concentration 5 mg/m³; body resistance 300 Pa; treatment flue gas volume 320,000 m³/h; flue gas temperature <60°C; tube panel dimensions 360×6,000 mm; anode tube height 6 m; anode tube count 540; field-enhanced gas velocity 1.46 m/s; device dimensions 11,500×7,500×13,000 mm; device height 18,000 mm; design pressure ±5,000 Pa; power supply model BLEMG-2K; power supply count 2 units; average power 200 kW.

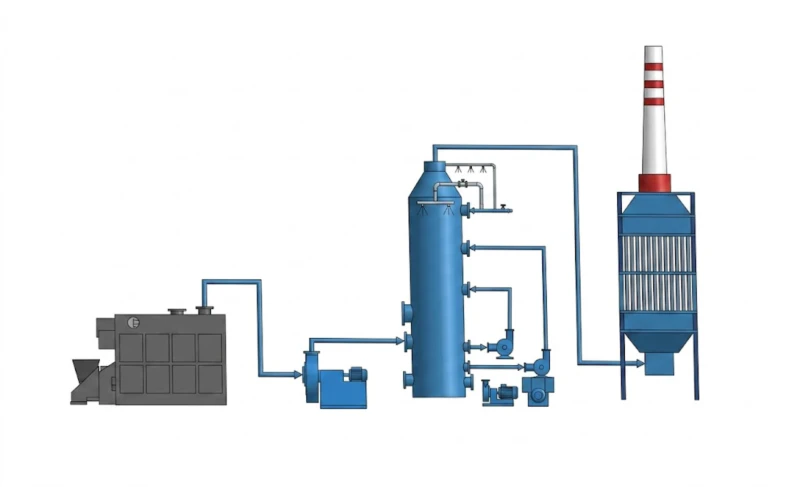

Limestone-gypsum FGD SNCR denitrification and BLWESP-540 wet electrostatic precipitator process flow diagram for carbon materials industry pre-baked anode calcination sintering furnace combined off-gas treatment showing SO2 at 6000 mg per cubic metre inlet FGD absorber CO safety interlock and wet ESP fine particulate polishing

Process Flow Summary

Calcination
Furnaces
8 units
Cool +
Coke Dust
Capture
Sintering
Furnaces
48 units
Combined
FGD ⭐
99.5% SO₂
Wet ESP ⭐
BLWESP-540
≥95% PM
IDF Fan
→ Stack

⭐ New equipment in this project. CO monitoring interlock on wet ESP (auto-shutdown at 150–250 mg/Nm³ CO) protects against explosion risk throughout the system.

Key Equipment and Operating Cost Summary

Item Specification
FGD absorber tower φ8.4/6.4 m; H=31.5 m; L/G=29.7; 5 spray layers; 1,400 m³/h pump; 2205 duplex SS slurry material
FGD limestone consumption (max) 2,150 kg/h; annual cost approx. 672 ten-thousand RMB (400 RMB/t)
FGD gypsum production (max) 3,850 kg/h (≈3.85 t/h); moisture ≤15%
Wet ESP BLWESP-540; 320,000 m³/h; ≥95%; 540 anode tubes φ360×6,000 mm; 11,500×7,500×13,000 mm; BLEMG-2K
Circulating pumps (FGD) 5 units (A/B/C/D/E); 132/160/185/185/200 kW; total installed approx. 862 kW for circulation alone
Induced draft fans 350×2 kW (1 duty + 1 standby); 6,000 Pa; φ3,220 mm duct
Max system running power 1,664.95 kW actual; 1,959.45 kW total installed
Annual electricity cost (8,000 h) Approx. 479.5 ten-thousand RMB equivalent (0.36 RMB/kWh)
Annual limestone cost Approx. 672 ten-thousand RMB (2,150 kg/h at 400 RMB/t)
CO interlock threshold (wet ESP) Auto-shutdown at CO 150–250 mg/Nm³ at wet ESP inlet (explosion prevention)

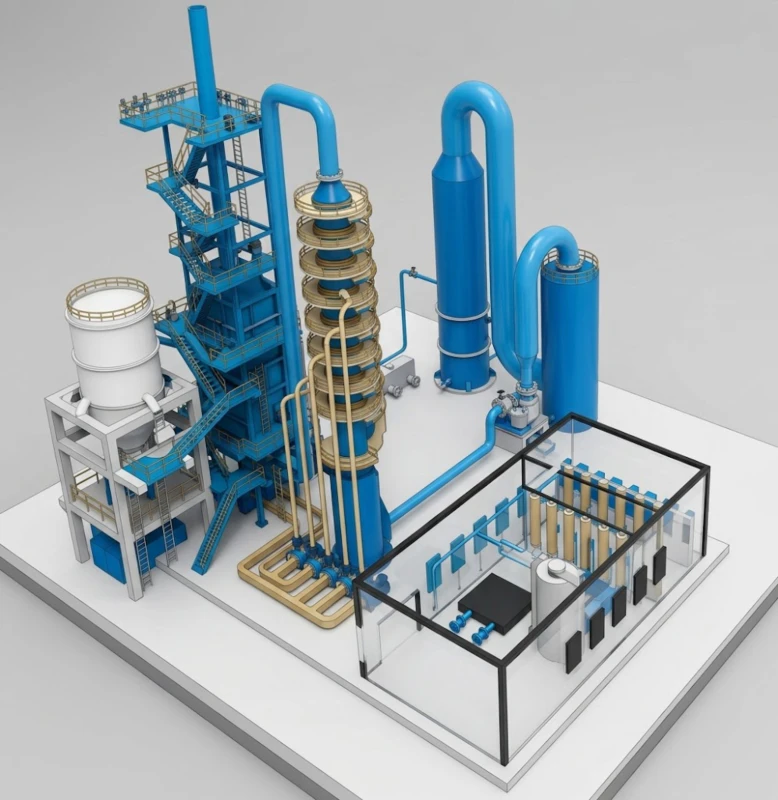

Plan design drawing of limestone-gypsum FGD absorber tower and BLWESP-540 wet electrostatic precipitator system for carbon materials pre-baked anode sintering furnace combined off-gas treatment showing equipment layout slurry circulation system gypsum dewatering and stack configuration


04 — Core Advantages

Five Reasons Why Limestone-Gypsum FGD + Wet ESP Is Optimal for Carbon Anode Sintering Off-Gas


  • FGD + Wet ESP Combination Achieves What Neither Technology Can Alone: Wet FGD at 99.5% efficiency reduces SO₂ from 6,000 mg/Nm³ to 35 mg/Nm³ — but the FGD also generates residual fine calcium sulfate crystallite mist that carries through the mist eliminator and would give a PM outlet of 20–50 mg/Nm³ at the stack without further polishing. The wet ESP captures these fine crystallites and acid mist droplets to deliver the ≤5 mg/Nm³ PM outlet that the EU IED BAT limit demands. The FGD does the heavy SO₂ removal; the wet ESP does the final PM polishing. Each stage would fail to meet the full compliance requirement if operating alone, but together they achieve ultra-low compliance across both parameters.

  • L/G=29.7 and 5-Layer Spray Are Correctly Specified for 6,000 mg/Nm³ SO₂ Inlet at 99.5% Removal: The liquid-to-gas ratio of 29.7 — among the highest of any FGD system described in the 20 case studies reviewed — is the direct consequence of the 6,000 mg/Nm³ SO₂ inlet concentration combined with the 99.5% removal requirement. At standard power plant FGD L/G ratios of 8–15, the SO₂ partial pressure in the gas phase at 6,000 mg/Nm³ inlet would exceed the absorption capacity of the liquid phase before the outlet target was reached. The 5-layer spray and L/G=29.7 provide the extended gas-liquid contact residence time needed to achieve the thermodynamic SO₂ removal duty. A system designed for power plant conditions and simply enlarged in size would not work correctly for this application without specifically reoptimising the L/G ratio and spray layer count.

  • 2205 Duplex Stainless Steel for FGD Slurry Wetted Parts Addresses Carbon Processing Off-Gas Corrosivity: Carbon anode sintering off-gas carries organic compounds, chloride residues, and high sulfate concentrations that create an exceptionally aggressive corrosion environment for the FGD slurry loop. Standard 316L stainless steel used in power plant FGD slurry systems would experience accelerated corrosion and premature failure in this environment. 2205 duplex stainless steel, with its higher chromium (22%), molybdenum (3.1%), and nitrogen content compared with 316L, provides superior resistance to pitting, crevice corrosion, and stress corrosion cracking in the chloride-rich, high-sulfate FGD slurry environment of carbon processing applications. This materials upgrade adds to the capital cost but is essential for achieving the designed service life.

  • CO Interlock on the Wet ESP Provides Essential Safety Protection Against Explosion Risk: The wet electrostatic precipitator operates at high voltage (BLEMG-2K generator, 200 kW average power). Carbon processing off-gas contains CO at concentrations that can approach or exceed the lower explosive limit in the wet ESP chamber if the furnace combustion becomes unstable. The CO monitoring system at the wet ESP inlet, linked to an automatic wet ESP shutdown interlock at 150–250 mg/Nm³ CO, is the primary safety barrier between a CO accumulation event and an explosion in the wet ESP. This interlock must be treated as a life-safety-critical system, maintained and tested on the same schedule as fire suppression and gas detection systems.

  • Gypsum By-Product at 3.85 t/h Generates Significant Commercial Value: At 3,850 kg/h maximum gypsum production, this FGD system generates approximately 30.8 t of gypsum per 8-hour operating day — a commercially significant volume. If the gypsum quality meets the construction material specification under EN 13279-1 (CaSO₄·2H₂O purity ≥90%, chloride ≤0.01%, moisture ≤15%), sales revenue from gypsum delivery to wallboard manufacturers or cement producers can substantially offset the 2,150 kg/h limestone reagent cost. Establishing a gypsum supply agreement before commissioning, and implementing a gypsum quality monitoring programme from startup, is as important commercially as the SO₂ compliance programme.

05 — Operational Results

Verified Compliance Data and Annual Cost Summary

35 / 35
mg/Nm³ actual/limit
SO₂ — 99.5% removal
5 / 5
mg/Nm³ actual/limit
PM — 95% removal
≤100
mg/Nm³ NOx outlet
SNCR denitrification
1,665 kW
actual running
(1,959 kW installed)
479.5
ten-thousand RMB/year
Electricity cost
3.85 t/h
gypsum production
Commercial by-product

Annual operating costs: electricity at 1,664.95 kW actual (0.36 RMB/kWh, 8,000 h/year) = approximately 479.5 ten-thousand RMB; limestone at 2,150 kg/h (400 RMB/t, 8,000 h) = approximately 672 ten-thousand RMB; limestone is by far the dominant reagent cost item. Gypsum production at 3,850 kg/h at 8,000 h/year = approximately 30,800 tonnes/year, which can generate substantial sales revenue to offset reagent cost depending on local gypsum market prices.


06 — Implementation Cautions

Six Critical Engineering and Safety Considerations for Carbon Anode Off-Gas Treatment

  • 🚫
    CO explosion risk in the wet ESP is a life-safety hazard — the CO interlock is not optional and must never be bypassed: Carbon processing off-gas contains CO at concentrations that can approach explosive levels in the wet ESP if combustion becomes unstable. The high-voltage field of the wet ESP provides an ignition source. When CO at the wet ESP inlet reaches 150–250 mg/Nm³, the automatic wet ESP shutdown interlock must activate reliably every time. This interlock must be: tested at the specified frequency (at minimum monthly); maintained by a qualified electrical instrument technician; never bypassed for any operational reason; and connected to the facility’s central safety monitoring system with alarm notification to on-duty management. The response measures include: linking the flue gas desulfurization system inlet monitoring CO concentration to the wet ESP operating control system, shutting down the wet ESP when gas CO concentration reaches 150–250 mg/Nm³; and utilising the surrounding embankment, dikes, and collection pools for emergency recovery as secondary containment.
  • ⚠️
    Flue gas corrosivity combined with equipment service life shortfalls require proactive materials management: The second documented risk is that flue gas corrosivity is strong and equipment service life does not reach design requirements. The 2205 duplex stainless steel specification for FGD slurry wetted parts is a direct response to this risk. However, material specification alone is insufficient: corrosion monitoring (wall thickness measurement at representative locations, at minimum annually from year 2 onward), pH management of the FGD slurry loop (maintaining pH within the specified window to prevent under-pH acid attack and over-pH scale deposition), and chloride concentration control in the slurry loop (bleed-and-dilute to prevent chloride buildup above the stress corrosion cracking threshold) are all required operational disciplines.
  • ⚠️
    Production process pipe leaks due to pipe cracking cause wastewater overflow and environmental contamination of the circulation environment: The third documented risk is pipe cracking leading to wastewater overflow. The combination of high-sulfate, high-chloride, high-temperature slurry cycling through pipes at up to 1,400 m³/h pump flow creates significant mechanical stress. Implement weekly visual inspection of all slurry pipework; include FGD slurry lines in the annual planned maintenance scope for non-destructive thickness testing; maintain a spare parts inventory for standard pipe sections and fittings; and ensure all secondary containment (drip trays, bund walls, emergency collection pools) are maintained in serviceable condition to capture any overflow before it reaches the environment.
  • ⚠️
    Very high limestone consumption (2,150 kg/h) requires robust supply chain and storage management: At 2,150 kg/h maximum limestone consumption with 180 m³ storage (7-day autonomy at full load), limestone supply must be managed as a production-critical input. The supply contract must guarantee delivery frequency. Maintain a minimum stock trigger level (3-day remaining supply) that initiates automatic purchase orders. For any unplanned supply interruption, have a documented contingency procedure that includes production throughput reduction proportional to available limestone stock.
  • ⚠️
    Gypsum quality must be proactively managed to maintain commercial reuse classification — carbon process contaminants can affect gypsum purity: Carbon anode sintering off-gas may carry organic compound residues and coke particulates that absorb into the FGD slurry, potentially contaminating the gypsum product with organic compounds, heavy metals from electrode raw materials (petroleum coke), or elevated chloride content. Monthly gypsum quality testing covering CaSO₄·2H₂O purity, moisture, chloride, and heavy metal content is required to confirm the gypsum remains within the commercial reuse specification. If carbon-related contamination is detected, the gypsum must be reclassified as industrial waste and disposed of through licensed contractors, eliminating the revenue credit and adding disposal cost.
  • ⚠️
    The DCS control system shared between FGD and wet ESP must have independent safety interlocks that cannot be overridden by the process control logic: Because the FGD and wet ESP share one DCS system, there is a risk that a DCS failure or software logic error simultaneously affects both treatment stages. The CO interlock in particular must be implemented as a hardware safety relay (not a software PLC logic path) to ensure it operates independently of any DCS state. Similarly, the wet ESP high-voltage power supply shutdown on CO alarm must be a hardwired interlock that activates regardless of the DCS status. Both interlocks must be verified by the electrical safety commissioning team before any production operation begins.

07 — Engineering Takeaways

Four Lessons from This Carbon Materials FGD + Wet ESP Project

  • !
    CO explosion risk in wet ESP is the unique and critical safety differentiator for carbon materials applications — it must be treated as a life-safety issue, not a compliance issue. The wet ESP CO interlock is the single most important safety system in this installation. Carbon materials processing is unique among the twenty case studies in generating CO at concentrations that can cause explosion in the high-voltage wet ESP environment. Engineers designing wet ESP systems for carbon processing applications who fail to implement the CO interlock as a hardwired life-safety system are creating an unacceptable explosion risk. This is not a question of regulatory preference — it is a question of preventing a potentially fatal explosion.
  • 2
    6,000 mg/Nm³ SO₂ is not simply a “higher concentration” version of the 2,800 mg/Nm³ steel kiln case or the 4,645 mg/Nm³ lithium carbonate case — it requires a fundamentally different FGD design with L/G=29.7 and 5 spray layers. Each doubling of SO₂ inlet concentration with the same outlet target requires approximately a 20–30% increase in L/G ratio to maintain the thermodynamic absorption driving force. At 6,000 mg/Nm³ inlet with 35 mg/Nm³ outlet target (99.4% removal), the system has effectively reached the upper practical limit of limestone-gypsum FGD process parameters. Any future increase in SO₂ inlet beyond 6,000 mg/Nm³ would require either a two-stage absorber system or a different desulfurization technology entirely.
  • 3
    2205 duplex stainless steel for FGD wetted parts in carbon processing applications is not a premium upgrade — it is the minimum viable specification for adequate service life. The combination of high SO₂ (producing sulfate), high organic compounds from carbon sintering, and high chloride from raw material impurities creates a slurry environment that attacks 316L stainless steel through stress corrosion cracking within 2–3 years. 2205 duplex stainless steel — specified throughout this installation for all slurry-wetted FGD components — is the material grade that provides adequate resistance to this specific corrosion environment. Accepting a lower-grade material specification to reduce initial capital cost will result in premature equipment failure within 2–3 years, creating replacement costs far exceeding the initial saving.
  • 4
    Gypsum at 3.85 t/h is a major revenue opportunity that justifies investment in gypsum quality management from day one. Most FGD system operators treat gypsum as a compliance by-product — something to be disposed of at minimum cost. At 3.85 t/h production, this installation generates approximately 30,800 tonnes of gypsum per year. If this qualifies as commercial-grade FGD gypsum (which requires active quality management to confirm and maintain), the revenue from gypsum sales can generate returns that materially offset the dominant limestone reagent cost of 672 ten-thousand RMB per year. Treating the gypsum quality programme as a commercial enterprise, not just a waste characterisation obligation, is the difference between an FGD system that pays for part of its own operating cost and one that is a net cost centre.

08 — Frequently Asked Questions

Carbon Anode Sintering Off-Gas FGD + Wet ESP Treatment: Ten Questions Answered

Questions from environmental permit managers, process engineers, and HSE teams at carbon materials, graphite electrode, and pre-baked anode manufacturing facilities planning FGD and wet ESP emission control upgrades under EU IED / Dutch Activities Decree requirements.

Q1. Why is the CO interlock on the wet ESP set at 150–250 mg/Nm³ rather than at the lower explosive limit (LEL) of CO?
The lower explosive limit (LEL) of CO in air is approximately 12.5% by volume (approximately 155,000 mg/Nm³ at standard conditions). The 150–250 mg/Nm³ interlock threshold is therefore set at a very small fraction of the actual LEL by volume. The reason for this conservative threshold is that CO concentration in the gas stream entering the wet ESP can change very rapidly during furnace combustion upsets, and the gas volume inside the wet ESP housing can create local concentration gradients where CO accumulates in dead zones at concentrations above the bulk average. By setting the interlock at 150–250 mg/Nm³ (rather than anywhere near the LEL), the system provides a very large safety margin that accounts for worst-case local accumulation, measurement lag in the CO analyser, and the time needed for the high-voltage power supply to de-energise after the interlock signal. This conservative approach reflects the consequence severity of a wet ESP explosion: at 200 kW BLEMG-2K power supply with 540 anode tubes, a wet ESP explosion would be a major industrial accident.
Q2. Why is L/G=29.7 required for this application when standard power plant FGD uses L/G=8–15?
The liquid-to-gas ratio in limestone-gypsum FGD absorption is determined by the SO₂ partial pressure in the gas phase, the target outlet concentration, and the mass transfer coefficient of the spray droplet system. At 6,000 mg/Nm³ SO₂ inlet (significantly higher than typical power plant concentrations of 1,000–3,500 mg/Nm³), the SO₂ partial pressure in the gas phase is much higher, creating a larger driving force that can be exploited for fast initial absorption but also requiring much larger total liquid volume to bring the outlet down to 35 mg/Nm³ (99.4% removal). The L/G ratio scales roughly with the natural logarithm of the required removal efficiency multiplied by the inlet concentration. At 6,000 mg/Nm³ inlet and 35 mg/Nm³ outlet, the mass balance calculation drives the L/G requirement to approximately 29.7 — nearly double the highest L/G seen in any other case study reviewed. The 5-layer spray provides the physical distribution of liquid at this high L/G rate across the full cross-sectional area of the absorber.
Q3. What EU IED and Dutch regulatory requirements apply to pre-baked anode production facilities?
Pre-baked anode production facilities in the Netherlands fall within the EU Industrial Emissions Directive (IED 2010/75/EU) scope for installations in the non-ferrous metals sector (as suppliers to the aluminium smelting industry). The applicable BAT conclusions from the Non-Ferrous Metals reference document and the Carbon and Graphite Products reference document set emission limit values for SO₂, PM, NOx, PAH (polycyclic aromatic hydrocarbons from carbon processing), and heavy metals. Dutch environmental permits are issued under the Omgevingswet, with site-specific limits set by the Omgevingsdienst. PAH emissions from anode sintering (particularly benzo[a]pyrene) require specific monitoring and treatment beyond the standard SO₂/NOx/PM framework — the wet FGD + wet ESP combination provides partial PAH capture through the wet scrubbing stages, but dedicated PAH monitoring is required under the Dutch permit. CEMS must be certified to EN 14181 QAL1/QAL2/AST.
Q4. What annual operating costs should be budgeted for this large-scale FGD + wet ESP system?
Annual operating costs: (1) Electricity: 1,664.95 kW actual running at 0.36 RMB/kWh equivalent, 8,000 h/year = approximately 479.5 ten-thousand RMB; (2) Limestone: 2,150 kg/h at 400 RMB/t, 8,000 h = approximately 672 ten-thousand RMB (this is the largest single operating cost, exceeding electricity); (3) Water: approximately 2.1 t/h at 20,160 RMB/day equivalent; (4) Planned maintenance: annual inspection and cleaning of FGD spray nozzles; biennial inspection of wet ESP anode tubes and corona discharge wires; triennial slurry system inspection and 2205 stainless steel wall thickness measurement. Gypsum sales revenue at 3,850 kg/h can generate a revenue credit that significantly offsets the limestone cost if gypsum quality is maintained within commercial specification.
Q5. How is gypsum quality managed to ensure it meets commercial reuse standards in a carbon processing context?
Carbon anode sintering off-gas carries organic compounds from the petroleum coke and coal tar pitch raw materials that can absorb into the FGD slurry and contaminate the gypsum. The gypsum quality management programme must include: (1) Monthly laboratory analysis covering CaSO₄·2H₂O purity (≥90% target), moisture content (≤15% design), chloride content (≤0.01% Cl for wallboard applications), and PAH content (to confirm no carcinogenic compound contamination above threshold); (2) Heavy metal screening (arsenic, vanadium, nickel from petroleum coke raw material impurities) at quarterly frequency; (3) Gypsum samples must be tested against the applicable Dutch standards for gypsum reuse in construction products before each delivery; (4) If any contaminant is detected above the reuse threshold, the affected gypsum batch must be reclassified as hazardous industrial waste and disposed of through licensed contractors with a Hazardous Waste Consignment Note.
Q6. How does 2205 duplex stainless steel differ from 316L for FGD slurry service in carbon processing applications?
2205 duplex stainless steel (UNS S32205) and 316L austenitic stainless steel differ in both microstructure and corrosion resistance. 2205 has approximately 22% chromium, 5% nickel, 3.1% molybdenum, and 0.14% nitrogen, versus 316L at approximately 17% chromium, 11% nickel, 2.2% molybdenum. The higher molybdenum and nitrogen content in 2205 gives it approximately 2× the pitting resistance equivalent number (PREN) of 316L, translating to significantly higher resistance to chloride-induced pitting corrosion and stress corrosion cracking. In the carbon processing FGD slurry environment (high chloride from raw material impurities, high sulfate, elevated temperature, low pH in certain zones), 316L experiences chloride stress corrosion cracking and pitting corrosion within 2–4 years. 2205 typically provides 8–12 years of service life in the same environment, making it the appropriate specification for a 20-year facility design life.
Q7. How does the SNCR denitrification system achieve 50% NOx reduction in this application?
SNCR (Selective Non-Catalytic Reduction) is a thermal denitrification process that injects ammonia or urea into the furnace combustion zone at the temperature window of 850–1,100°C where the NOx-NH₃ thermal decomposition reaction is effective. In this installation, the NOx inlet is relatively low (50–100 mg/Nm³) compared with the SO₂ and PM parameters — the furnace is fired on natural gas rather than coal, limiting thermal NOx generation. The SNCR 50% removal efficiency takes NOx from 50–100 mg/Nm³ inlet to ≤50 mg/Nm³ outlet, comfortably within the ≤100 mg/Nm³ design target. The SNCR is the appropriate technology for this modest NOx level — SCR would be over-specified for a 50% removal requirement from a low initial concentration and would add significant capital cost and operational complexity without compliance benefit. The SNCR temperature window must be monitored continuously, and urea or ammonia injection must be cut off when the furnace zone temperature falls below 850°C to prevent excess ammonia slip.
Q8. What happens to the wet ESP during a CO interlock shutdown event — how is emission compliance maintained while the ESP is offline?
When the CO interlock triggers a wet ESP shutdown, the high-voltage power supply de-energises and the wet ESP collection function ceases. The gas continues to flow through the wet ESP vessel (which acts as a passive flow-through vessel without electrical collection) and the FGD absorber, maintaining SO₂ compliance but losing the wet ESP PM collection efficiency. During the ESP offline period, the PM outlet will rise from the normal ≤5 mg/Nm³ to approximately 20–100 mg/Nm³ (the FGD mist eliminator outlet level). The facility must: (1) notify the Omgevingsdienst of the ESP shutdown event as required under the permit conditions for abnormal operations; (2) investigate and correct the CO source (kiln combustion management) before restarting the wet ESP; (3) document the event, duration, and estimated PM outlet during the shutdown period in the environmental compliance record. The ESP restart after a CO event must follow the documented startup procedure, including confirming CO has returned below the safe operating threshold.
Q9. What CEMS monitoring is required for a pre-baked anode production facility under Dutch environmental permit conditions?
CEMS under Dutch environmental permit conditions for pre-baked anode production includes: SO₂ (continuous, given the 6,000 mg/Nm³ inlet relevance); PM (continuous); CO (continuous — required both for the wet ESP safety interlock and as a stack emission parameter); NOx (continuous or periodic depending on permit); O₂ (continuous for reference correction); temperature and flow (continuous). For carbon processing specifically, PAH monitoring (including benzo[a]pyrene) is typically required, usually by periodic manual sampling (minimum 2×/year) using an accredited laboratory rather than continuous monitoring. Fluoride (from raw material impurities) may also be required as a periodic parameter. All CEMS must be certified to EN 14181 QAL1/QAL2/AST. The CO channel is particularly critical for this application and must have a response time specification adequate to detect CO spikes quickly enough for the wet ESP safety interlock to act before CO accumulates to explosive concentrations in the ESP vessel.
Q10. Are there reference installations for limestone-gypsum FGD + wet ESP systems for carbon anode sintering off-gas available for site visits?
Yes. The integrated limestone-gypsum FGD + BLWESP-540 wet electrostatic precipitator system described in this case study has been deployed at pre-baked anode, graphite electrode, and carbon materials manufacturing facilities. Reference site visits can be arranged for qualified prospective clients, including access to verified CEMS compliance data, CO interlock test records, and gypsum quality testing documentation. The large scale of this installation (400,000 Nm³/h, L/G=29.7, 3.85 t/h gypsum) makes it a particularly valuable reference for any carbon materials facility with similar scale and SO₂ loading. Please use the contact link below to request reference documentation or to arrange a site visit.
